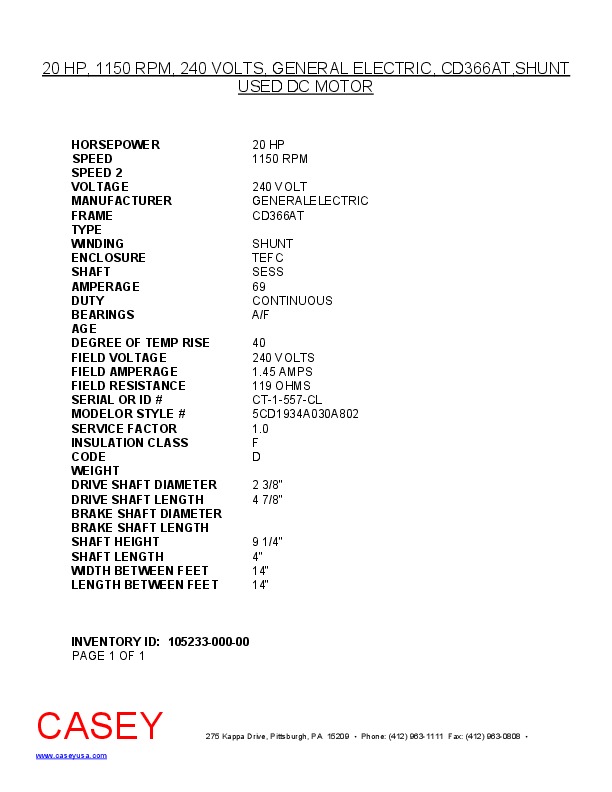

20 HP, 1150 RPM, 240 VOLTS, GENERAL ELECTRIC, CD366AT,SHUNT USED DC MOTOR
| INVENTORY ID | 10523300000 |
| TITLE | 20 HP, 1150 RPM, 240 VOLTS, GENERAL ELECTRIC, CD366AT,SHUNT USED DC MOTOR |
| HORSEPOWER | 20 HP |
| SPEED | 1150 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 366AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 69 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 VOLTS |
| FIELD AMPERAGE | 1.45 AMPS |
| FIELD RESISTANCE | 119 OHMS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | CT-1-557-CL |
| MODEL NUMBER OR STYLE NUMBER | 5CD1934A030A802 |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2 3/8" |
| DRIVE SHAFT LENGTH | 4 7/8" |
| SHAFT HEIGHT | 9 1/4" |
| SHAFT LENGTH | 4" |
| WIDTH BETWEEN FEET | 14" |
| LENGTH BETWEEN FEET | 14" |
