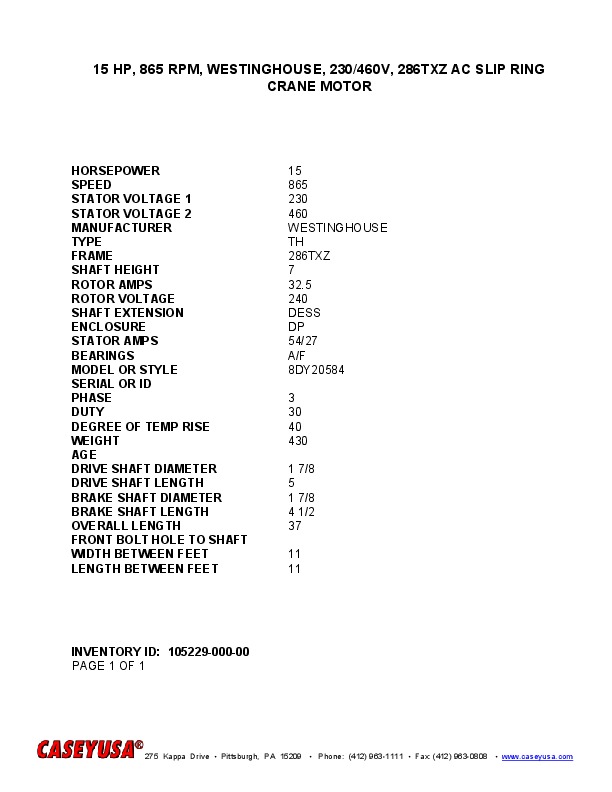

15 HP, 865 RPM, WESTINGHOUSE, 230/460V, 286TXZ AC SLIP RING CRANE MOTOR
 "10522900000 15 HP, 865 RPM, WESTINGHOUSE, 230/460V, 286TXZ AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 10522900000 |
| TITLE | 15 HP, 865 RPM, WESTINGHOUSE, 230/460V, 286TXZ AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 15 |
| SPEED | 865 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | WESTINGHOUSE |
| TYPE | TH |
| FRAME | 286TXZ |
| SHAFT HEIGHT | 7 |
| ROTOR AMPS | 32.5 |
| ROTOR VOLTS | 240 |
| SHAFT EXTENSION | DESS |
| ENCLOSURE | DP |
| STATOR AMPS | 54/27 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 8DY20584 |
| PHASE | 3 |
| DUTY (MINUTES) | 30 |
| DEGREE OF TEMPERATURE RISE | 40 |
| WEIGHT | 430 |
| DRIVE SHAFT DIAMETER | 1 7/8 |
| DRIVE SHAFT LENGTH | 5 |
| BRAKE SHAFT DIAMETER | 1 7/8 |
| BRAKE SHAFT LENGTH | 4 1/2 |
| OVERALL LENGTH | 37 |
| WIDTH BETWEEN FEET | 11 |
| LENGTH BETWEEN FEET | 11 |
