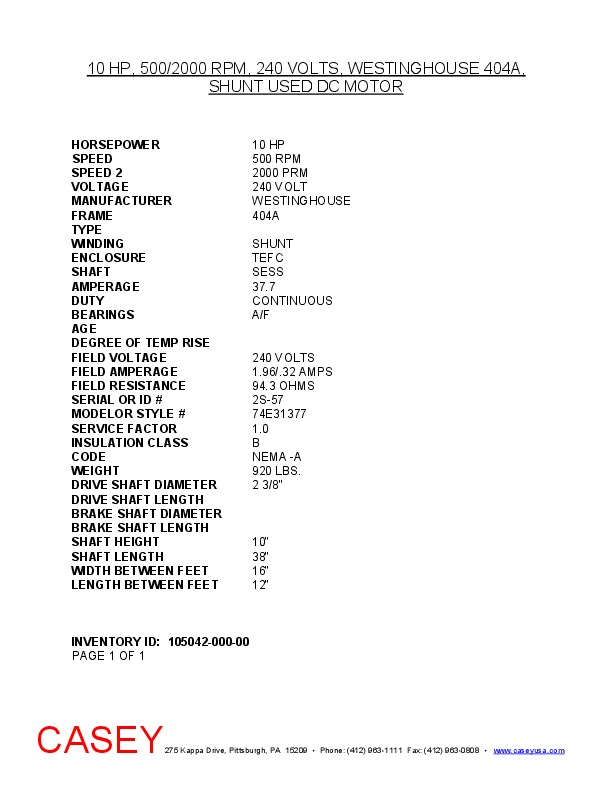

QTY (2) 10 HP, 500/2000 RPM, 240 VOLTS, WESTINGHOUSE 404A,SHUNT USED DC MOTOR
| INVENTORY ID | 10504200000 |
| TITLE | QTY (2) 10 HP, 500/2000 RPM, 240 VOLTS, WESTINGHOUSE 404A,SHUNT USED DC MOTOR |
| HORSEPOWER | 10 HP |
| SPEED | 500 RPM |
| SPEED 2 | 2000 PRM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 404A |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 37.7 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 VOLTS |
| FIELD AMPERAGE | 1.96/.32 AMPS |
| FIELD RESISTANCE | 94.3 OHMS |
| SERIAL NUMBER OR ID NUMBER | 2S-57 |
| MODEL NUMBER OR STYLE NUMBER | 74E31377 |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | B |
| POWER SUPPLY CODE | NEMA -A |
| DRIVE SHAFT DIMENSION | 2 3/8" |
| SHAFT HEIGHT | 10" |
| SHAFT LENGTH | 38" |
| WIDTH BETWEEN FEET | 16" |
| LENGTH BETWEEN FEET | 12" |
