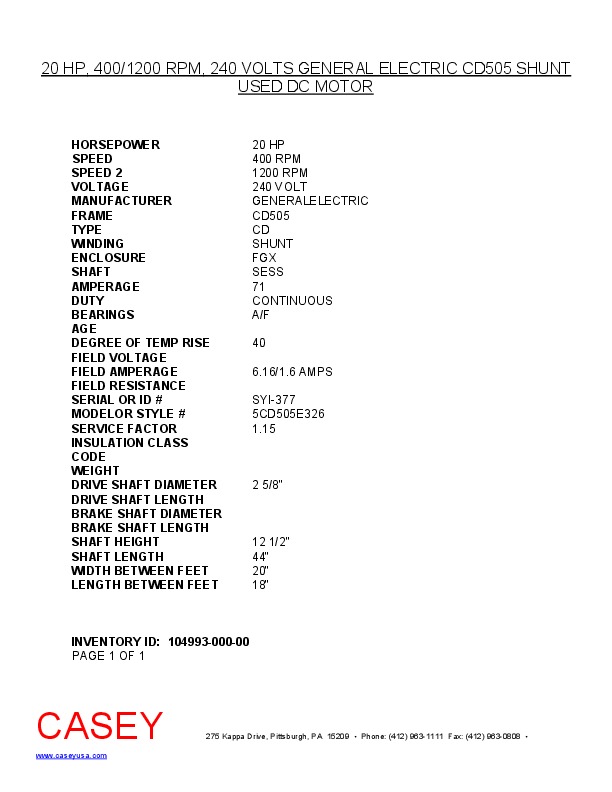

QTY (3) 20 HP, 400/1200 RPM, 240 VOLTS GENERAL ELECTRIC CD505 SHUNT USED DC MOTOR
| INVENTORY ID | 10499300000 |
| TITLE | QTY (3) 20 HP, 400/1200 RPM, 240 VOLTS GENERAL ELECTRIC CD505 SHUNT USED DC MOTOR |
| HORSEPOWER | 20 HP |
| SPEED | 400 RPM |
| SPEED 2 | 1200 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 505 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | FGX |
| SHAFT | SESS |
| AMPERAGE | 71 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 6.16/1.6 AMPS |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | SYI-377 |
| MODEL NUMBER OR STYLE NUMBER | 5CD505E326 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| SHAFT HEIGHT | 12 1/2" |
| SHAFT LENGTH | 44" |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 18" |
