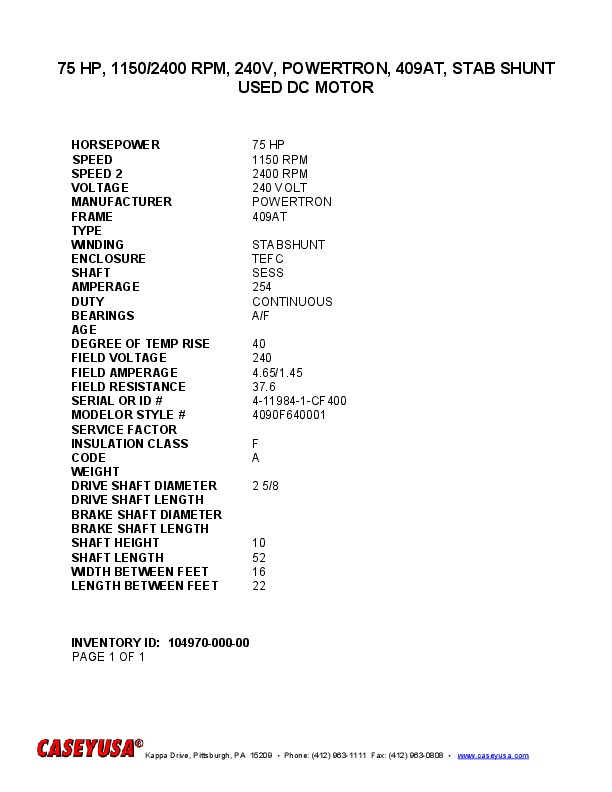

75 HP, 1150/2400 RPM, 240V, POWERTRON, 409AT, STAB SHUNT USED DC MOTOR
 "10497000000 75 HP, 1150/2400 RPM, 240V, POWERTRON, 409AT, STAB SHUNT USED DC MOTOR")
| INVENTORY ID | 10497000000 |
| TITLE | 75 HP, 1150/2400 RPM, 240V, POWERTRON, 409AT, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 75 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2400 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | POWERTRON |
| FRAME | 409AT |
| WINDING | STABSHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 254 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 4.65/1.45 |
| FIELD RESISTANCE | 37.6 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 4-11984-1-CF400 |
| MODEL NUMBER OR STYLE NUMBER | 4090F640001 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | A |
| DRIVE SHAFT DIMENSION | 2 5/8 |
| SHAFT HEIGHT | 10 |
| SHAFT LENGTH | 52 |
| WIDTH BETWEEN FEET | 16 |
| LENGTH BETWEEN FEET | 22 |
