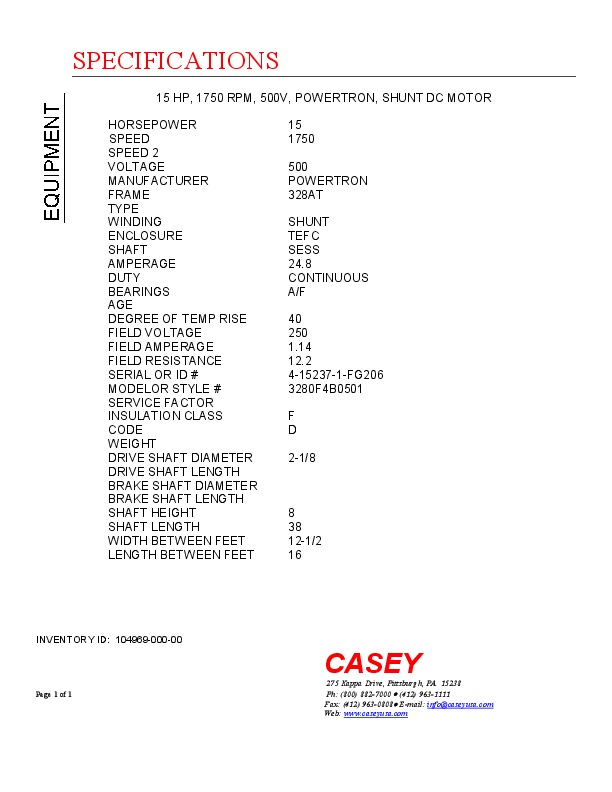

15 HP, 1750 RPM, 500V, POWERTRON, 328AT, SHUNT USED DC MOTOR
| INVENTORY ID | 10496900000 |
| TITLE | 15 HP, 1750 RPM, 500V, POWERTRON, 328AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 15 HP |
| SPEED | 1750 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | POWERTRON |
| FRAME | 328AT |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 24.8 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 250 |
| FIELD AMPERAGE | 1.14 |
| FIELD RESISTANCE | 12.2 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 4-15237-1-FG206 |
| MODEL NUMBER OR STYLE NUMBER | 3280F4B0501 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2-1/8 |
| SHAFT HEIGHT | 8 |
| MOTOR LENGTH | 38 |
| WIDTH BETWEEN FEET | 12-1/2 |
| LENGTH BETWEEN FEET | 16 |
