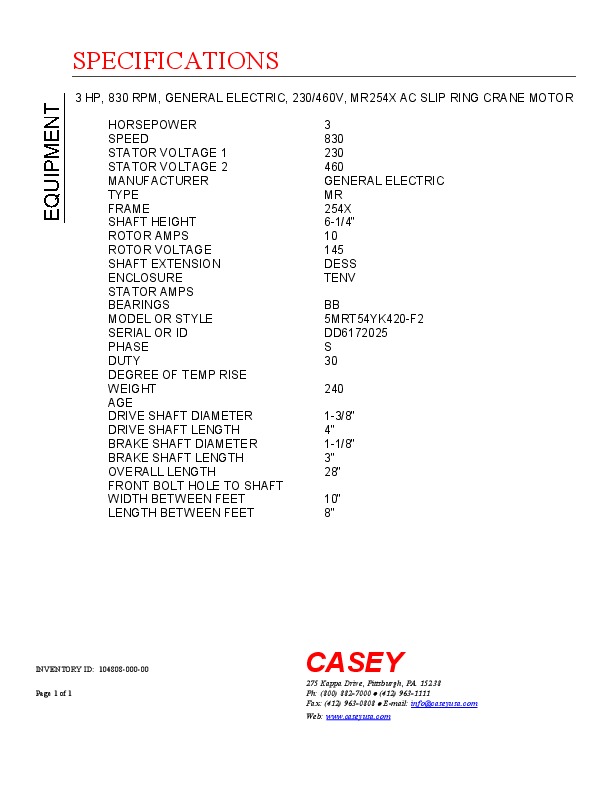

3 HP, 830 RPM, GENERAL ELECTRIC, 230/460V, MR254X AC SLIP RING CRANE MOTOR
 "10480800000 3 HP, 830 RPM, GENERAL ELECTRIC, 230/460V, MR254X AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 10480800000 |
| TITLE | 3 HP, 830 RPM, GENERAL ELECTRIC, 230/460V, MR254X AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 3 |
| SPEED | 830 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| TYPE | MR |
| FRAME | 254X |
| SHAFT HEIGHT | 6-1/4" |
| ROTOR AMPS | 10 |
| ROTOR VOLTS | 145 |
| SHAFT EXTENSION | DESS |
| ENCLOSURE | TENV |
| BEARINGS | BB |
| MODEL NUMBER OR STYLE NUMBER | 5MRT54YK420-F2 |
| SERIAL NUMBER OR ID NUMBER | DD6172025 |
| PHASE | S |
| DUTY (MINUTES) | 30 |
| WEIGHT | 240 |
| DRIVE SHAFT DIAMETER | 1-3/8" |
| DRIVE SHAFT LENGTH | 4" |
| BRAKE SHAFT DIAMETER | 1-1/8" |
| BRAKE SHAFT LENGTH | 3" |
| OVERALL LENGTH | 28" |
| WIDTH BETWEEN FEET | 10" |
| LENGTH BETWEEN FEET | 8" |
