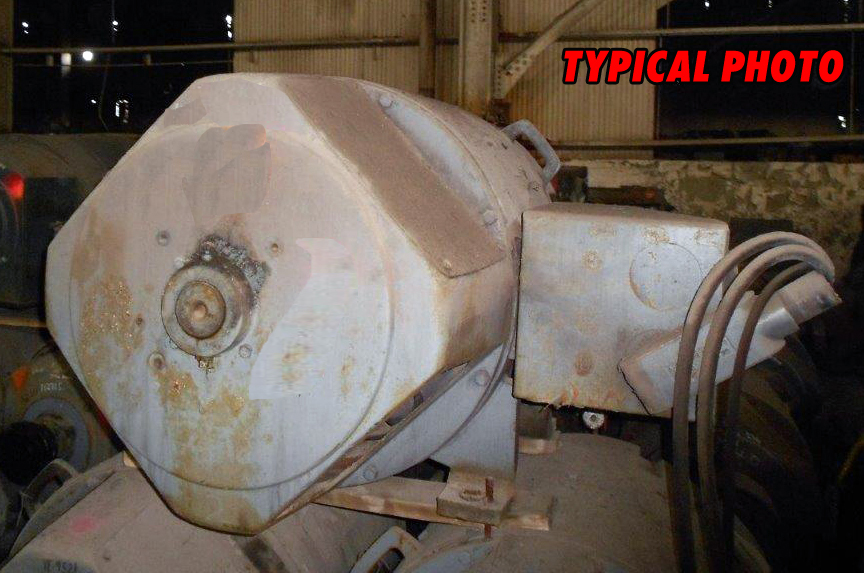

50 HP, 300/1500 RPM, 240V, GENERAL ELECTRIC SHUNT DC MOTOR
 "10467100100 50 HP, 300/1500 RPM, 240V, GENERAL ELECTRIC SHUNT DC MOTOR")

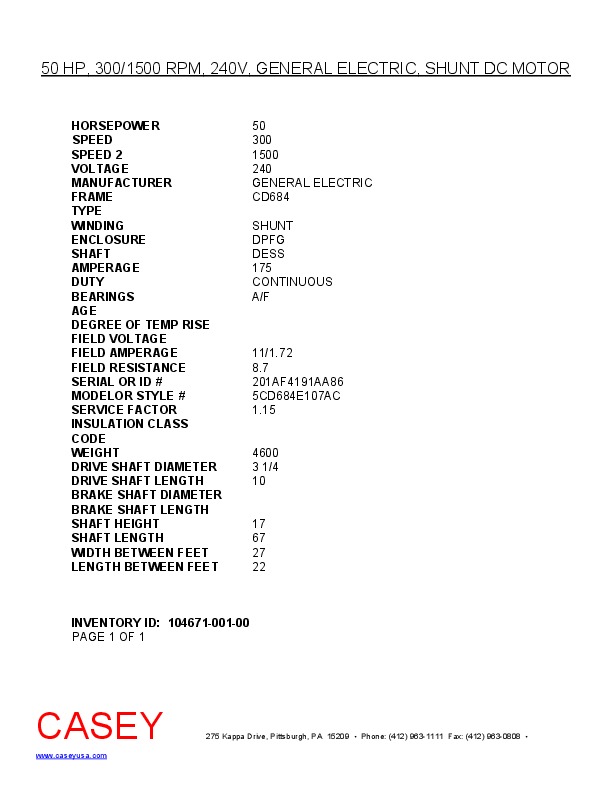

| INVENTORY ID | 10467100100 |
| TITLE | 50 HP, 300/1500 RPM, 240V, GENERAL ELECTRIC SHUNT DC MOTOR |
| HORSEPOWER | 50 |
| SPEED | 300 |
| SPEED 2 | 1500 |
| VOLTAGE | 240 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 684 |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 175 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 11/1.72 |
| FIELD RESISTANCE | 8.7 |
| SERIAL NUMBER OR ID NUMBER | 201AF4191AA86 |
| MODEL NUMBER OR STYLE NUMBER | 5CD684E107AC |
| SERVICE FACTOR | 1.15 |
| WEIGHT | 4600 |
| DRIVE SHAFT DIMENSION | 3 1/4 |
| DRIVE SHAFT LENGTH | 10 |
| SHAFT HEIGHT | 17 |
| SHAFT LENGTH | 67 |
| WIDTH BETWEEN FEET | 27 |
| LENGTH BETWEEN FEET | 22 |
