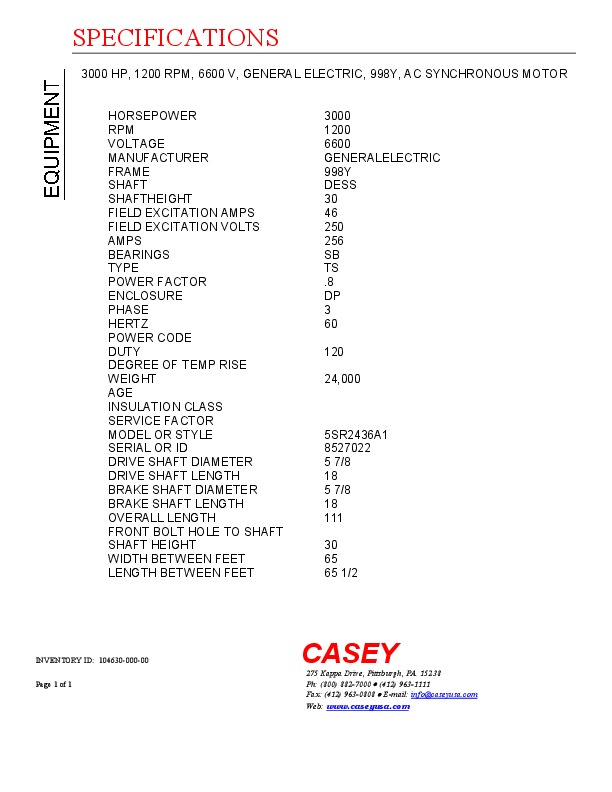

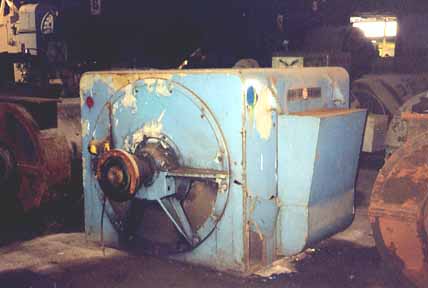

3000 HP, 1200 RPM, 6600 V, GENERAL ELECTRIC, 998Y, AC SYNCHRONOUS MOTOR
 "10463000000 3000 HP, 1200 RPM, 6600 V, GENERAL ELECTRIC, 998Y, AC SYNCHRONOUS MOTOR")
| INVENTORY ID | 10463000000 |
| TITLE | 3000 HP, 1200 RPM, 6600 V, GENERAL ELECTRIC, 998Y, AC SYNCHRONOUS MOTOR |
| HORSEPOWER | 3000 |
| RPM | 1200 |
| VOLTAGE | 6600 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 998Y |
| SHAFT | DESS |
| SHAFT HEIGHT | 30 |
| FIELD EXCITATION AMPS | 46 |
| FIELD EXCITATION VOLTS | 250 |
| AMPERAGE | 256 |
| BEARINGS | SB |
| TYPE | TS |
| POWER FACTOR | .8 |
| ENCLOSURE | DP |
| PHASE | 3 |
| HERTZ | 60 |
| DUTY | 120 |
| MODEL NUMBER OR STYLE NUMBER | 5SR2436A1 |
| SERIAL NUMBER OR ID NUMBER | 8527022 |
| WEIGHT | 24,000 |
| DRIVE SHAFT DIAMETER | 5 7/8 |
| DRIVE SHAFT LENGTH | 18 |
| BRAKE SHAFT DIAMETER | 5 7/8 |
| BRAKE SHAFT LENGTH | 18 |
| OVERALL LENGTH | 111 |
| WIDTH BETWEEN FEET | 65 |
| LENGTH BETWEEN FEET | 65 1/2 |
