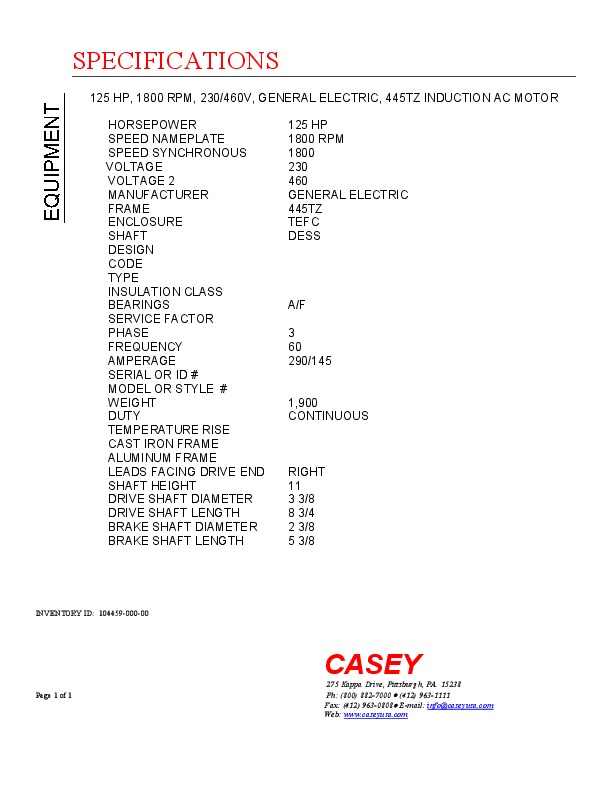

125 HP, 1800 RPM, 230/460V, GENERAL ELECTRIC, 445TZ INDUCTION AC MOTOR
 "10445900000 125 HP, 1800 RPM, 230/460V, GENERAL ELECTRIC, 445TZ INDUCTION AC MOTOR")
 "10445900000 125 HP, 1800 RPM, 230/460V, GENERAL ELECTRIC, 445TZ INDUCTION AC MOTOR")
| INVENTORY ID | 10445900000 |
| TITLE | 125 HP, 1800 RPM, 230/460V, GENERAL ELECTRIC, 445TZ INDUCTION AC MOTOR |
| HORSEPOWER | 125 HP |
| SPEED NAMEPLATE | 1800 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445TZ |
| ENCLOSURE | TEFC |
| SHAFT | DESS |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 290/145 |
| WEIGHT | 1,900 |
| DUTY | CONTINUOUS |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 8 3/4 |
| BRAKE SHAFT DIAMETER | 2 3/8 |
| BRAKE SHAFT LENGTH | 5 3/8 |
