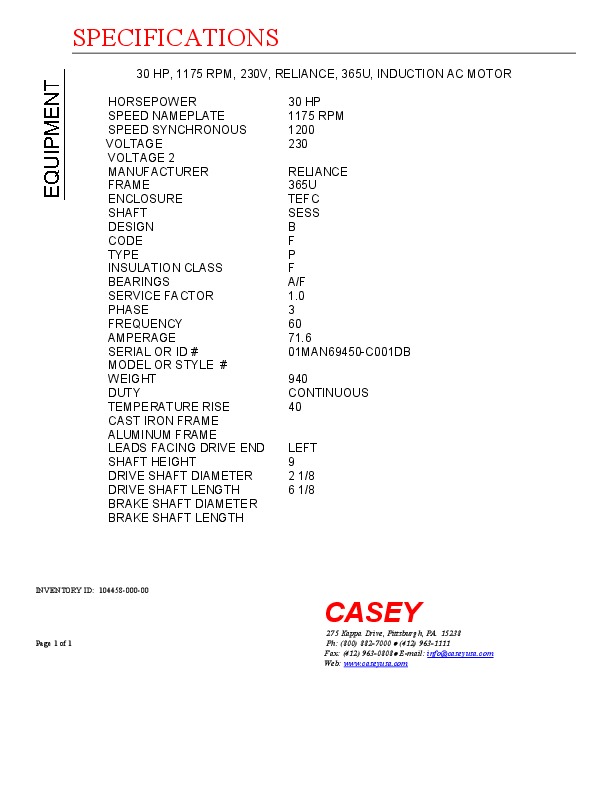

30 HP, 1175 RPM, 230V, RELIANCE, 365U, INDUCTION AC MOTOR
 "10445800000 30 HP, 1175 RPM, 230V, RELIANCE, 365U, INDUCTION AC MOTOR")
| INVENTORY ID | 10445800000 |
| TITLE | 30 HP, 1175 RPM, 230V, RELIANCE, 365U, INDUCTION AC MOTOR |
| HORSEPOWER | 30 HP |
| SPEED NAMEPLATE | 1175 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 230 |
| MANUFACTURER | RELIANCE |
| FRAME | 365U |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 71.6 |
| SERIAL NUMBER OR ID NUMBER | 01MAN69450-C001DB |
| WEIGHT | 940 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 9 |
| DRIVE SHAFT DIAMETER | 2 1/8 |
| DRIVE SHAFT LENGTH | 6 1/8 |
