50 HP, 1150/2000 RPM, 500V, GENERAL ELECTRIC, CD409ATY, STAB SHUNT USED DC MOTOR
 "10444200000 50 HP, 1150/2000 RPM, 500V, GENERAL ELECTRIC, CD409ATY, STAB SHUNT USED DC MOTOR")

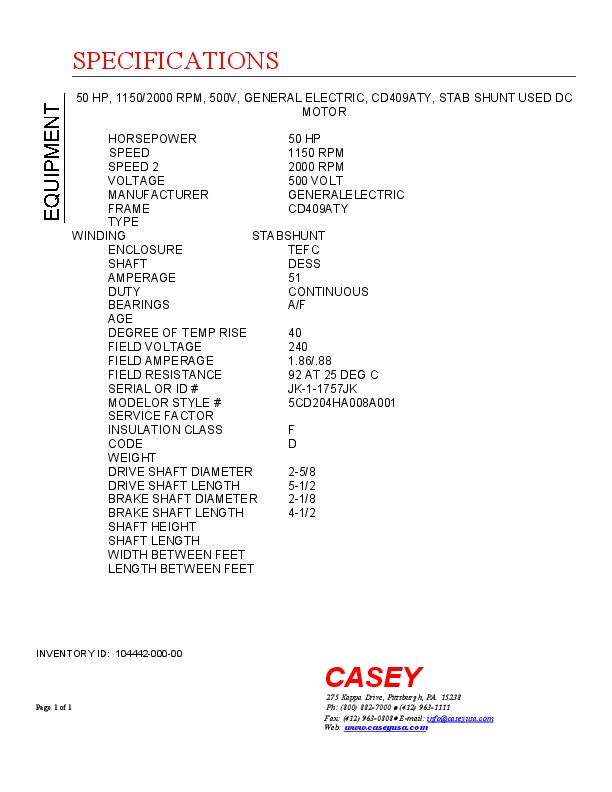

| INVENTORY ID | 10444200000 |
| TITLE | 50 HP, 1150/2000 RPM, 500V, GENERAL ELECTRIC, CD409ATY, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 50 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 409ATY |
| WINDING | STABSHUNT |
| ENCLOSURE | TEFC |
| SHAFT | DESS |
| AMPERAGE | 51 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 1.86/.88 |
| FIELD RESISTANCE | 92 AT 25 DEG C |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | JK-1-1757JK |
| MODEL NUMBER OR STYLE NUMBER | 5CD204HA008A001 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2-5/8 |
| DRIVE SHAFT LENGTH | 5-1/2 |
| BRAKE SHAFT DIAMETER | 2-1/8 |
| BRAKE SHAFT LENGTH | 4-1/2 |
