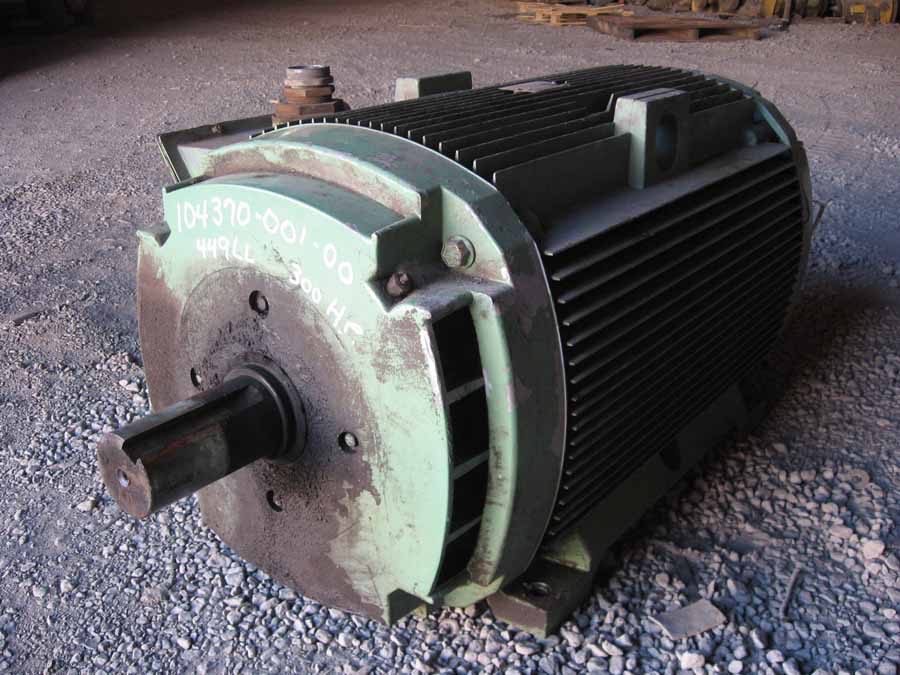

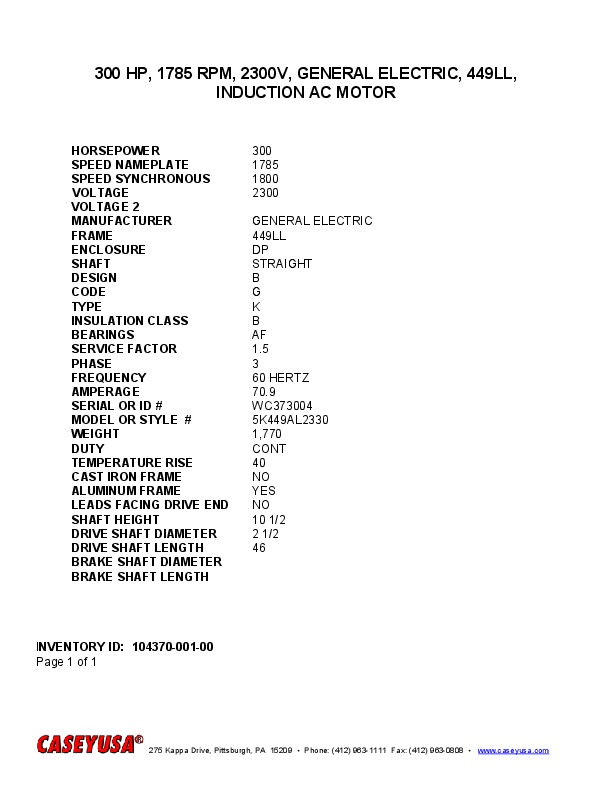

300 HP, 1785 RPM, 2300V, GENERAL ELECTRIC, 449LL, INDUCTION AC MOTOR
 "10437000100 300 HP, 1785 RPM, 2300V, GENERAL ELECTRIC, 449LL, INDUCTION AC MOTOR")
| INVENTORY ID | 10437000100 |
| TITLE | 300 HP, 1785 RPM, 2300V, GENERAL ELECTRIC, 449LL, INDUCTION AC MOTOR |
| HORSEPOWER | 300 |
| SPEED NAMEPLATE | 1785 |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 449LL |
| ENCLOSURE | DP |
| SHAFT | STRAIGHT |
| DESIGN | B |
| CODE | G |
| TYPE | K |
| INSULATION CLASS | B |
| BEARINGS | AF |
| SERVICE FACTOR | 1.5 |
| PHASE | 3 |
| FREQUENCY | 60 HERTZ |
| AMPERAGE | 70.9 |
| SERIAL NUMBER OR ID NUMBER | WC373004 |
| MODEL NUMBER OR STYLE NUMBER | 5K449AL2330 |
| WEIGHT | 1,770 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | NO |
| CAST ALUM FRAME | YES |
| LEADS FACING DRIVE END | NO |
| SHAFT HEIGHT | 10 1/2 |
| DRIVE SHAFT DIAMETER | 2 1/2 |
| DRIVE SHAFT LENGTH | 46 |
