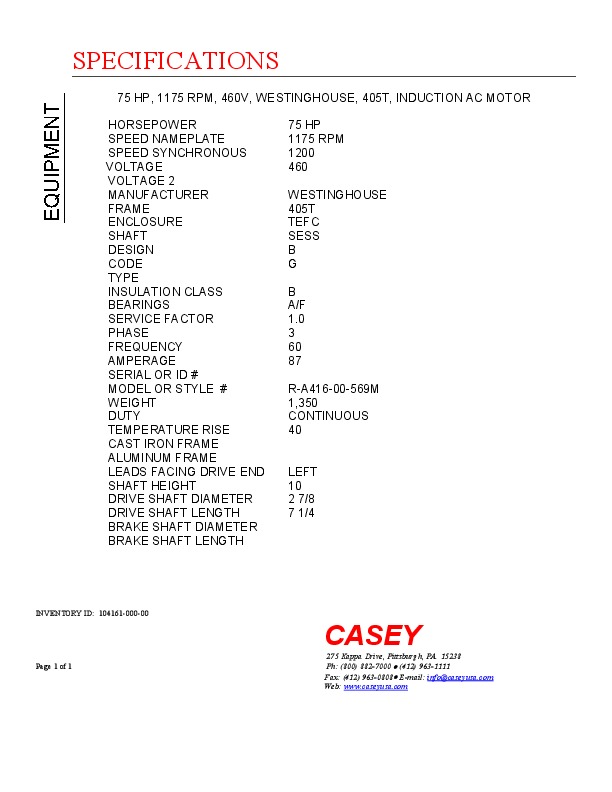

75 HP, 1175 RPM, 460V, WESTINGHOUSE, 405T, INDUCTION AC MOTOR
| INVENTORY ID | 10416100000 |
| TITLE | 75 HP, 1175 RPM, 460V, WESTINGHOUSE, 405T, INDUCTION AC MOTOR |
| HORSEPOWER | 75 HP |
| SPEED NAMEPLATE | 1175 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 405T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 87 |
| MODEL NUMBER OR STYLE NUMBER | R-A416-00-569M |
| WEIGHT | 1,350 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 10 |
| DRIVE SHAFT DIAMETER | 2 7/8 |
| DRIVE SHAFT LENGTH | 7 1/4 |
