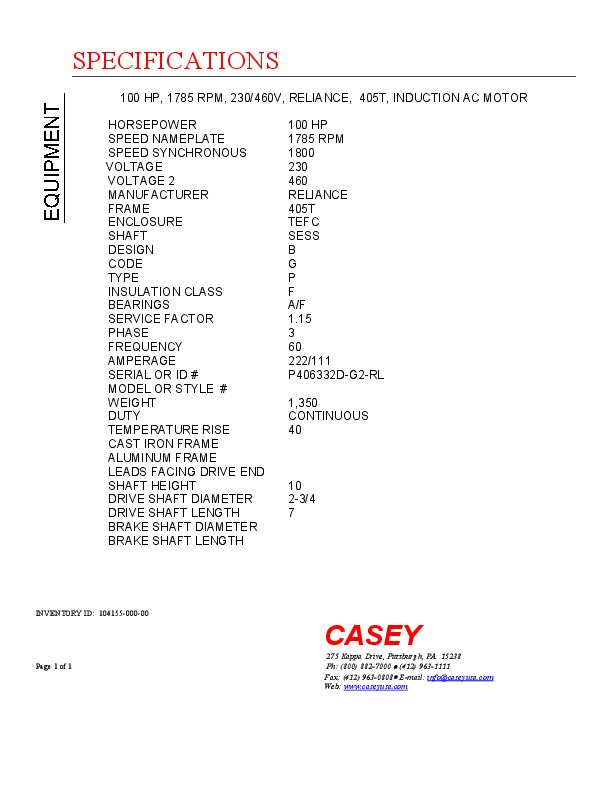

100 HP, 1785 RPM, 230/460V, RELIANCE, 405T, INDUCTION AC MOTOR
| INVENTORY ID | 10415500000 |
| TITLE | 100 HP, 1785 RPM, 230/460V, RELIANCE, 405T, INDUCTION AC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED NAMEPLATE | 1785 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 405T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | P |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 222/111 |
| SERIAL NUMBER OR ID NUMBER | P406332D-G2-RL |
| WEIGHT | 1,350 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| SHAFT HEIGHT | 10 |
| DRIVE SHAFT DIAMETER | 2-3/4 |
| DRIVE SHAFT LENGTH | 7 |
