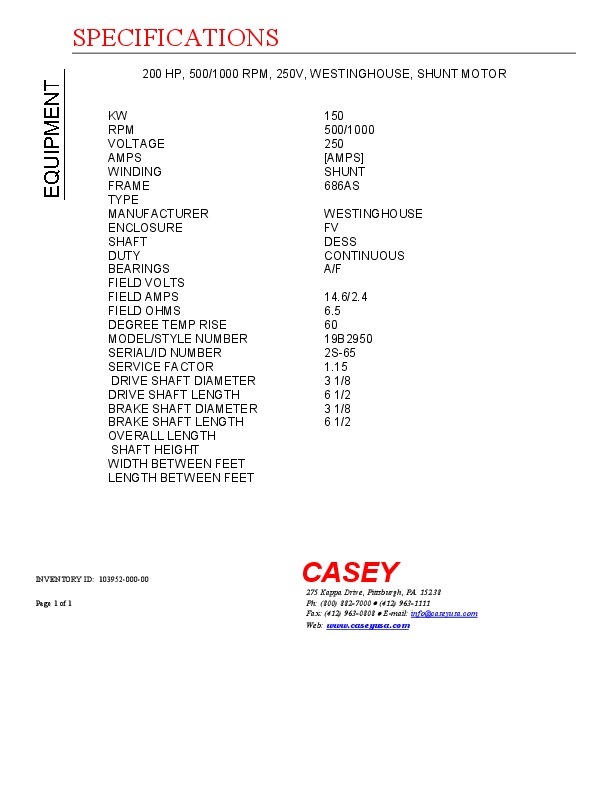

200 HP, 500/1000 RPM, 250V, WESTINGHOUSE, SHUNT DC MOTOR
| INVENTORY ID | 10395200000 |
| TITLE | 200 HP, 500/1000 RPM, 250V, WESTINGHOUSE, SHUNT DC MOTOR |
| KW | 150 |
| RPM | 500/1000 |
| VOLTAGE | 250 |
| WINDING | SHUNT |
| FRAME | 686AS |
| MANUFACTURER | WESTINGHOUSE |
| ENCLOSURE | FV |
| SHAFT | DESS |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPS | 14.6/2.4 |
| FIELD OHMS | 6.5 |
| DEGREE TEMP RISE | 60 |
| MODEL NUMBER OR STYLE NUMBER | 19B2950 |
| SERIAL NUMBER OR ID NUMBER | 2S-65 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIAMETER | 3 1/8 |
| DRIVE SHAFT LENGTH | 6 1/2 |
| BRAKE SHAFT DIAMETER | 3 1/8 |
| BRAKE SHAFT LENGTH | 6 1/2 |
