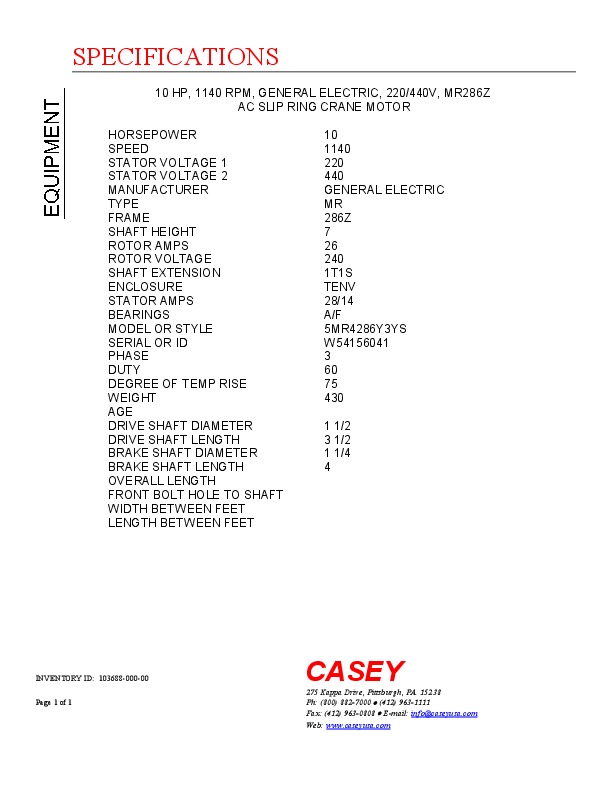

10 HP, 1140 RPM, GENERAL ELECTRIC, 220/440V, MR286Z AC SLIP RING CRANE MOTOR
| INVENTORY ID | 10368800000 |
| TITLE | 10 HP, 1140 RPM, GENERAL ELECTRIC, 220/440V, MR286Z AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 10 |
| SPEED | 1140 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| MANUFACTURER | GENERAL ELECTRIC |
| TYPE | MR |
| FRAME | 286Z |
| SHAFT HEIGHT | 7 |
| ROTOR AMPS | 26 |
| ROTOR VOLTS | 240 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 28/14 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 5MR4286Y3YS |
| SERIAL NUMBER OR ID NUMBER | W54156041 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 430 |
| DRIVE SHAFT DIAMETER | 1 1/2 |
| DRIVE SHAFT LENGTH | 3 1/2 |
| BRAKE SHAFT DIAMETER | 1 1/4 |
| BRAKE SHAFT LENGTH | 4 |
