100 HP, 650/1800 RPM, 240V, GENERAL ELECTRIC, CD683, STAB SHUNT USED DC MOTOR
 "10366600000 100 HP, 650/1800 RPM, 240V, GENERAL ELECTRIC, CD683, STAB SHUNT USED DC MOTOR")

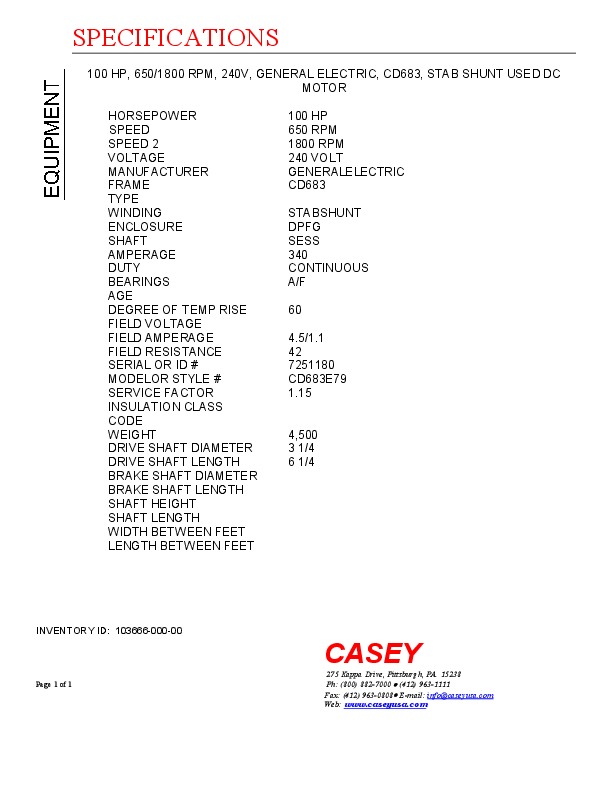

| INVENTORY ID | 10366600000 |
| TITLE | 100 HP, 650/1800 RPM, 240V, GENERAL ELECTRIC, CD683, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED | 650 RPM |
| SPEED 2 | 1800 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 683 |
| WINDING | STABSHUNT |
| ENCLOSURE | DPFG |
| SHAFT | SESS |
| AMPERAGE | 340 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 4.5/1.1 |
| FIELD RESISTANCE | 42 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | 7251180 |
| MODEL NUMBER OR STYLE NUMBER | CD683E79 |
| SERVICE FACTOR | 1.15 |
| WEIGHT | 4,500 |
| DRIVE SHAFT DIMENSION | 3 1/4 |
| DRIVE SHAFT LENGTH | 6 1/4 |
