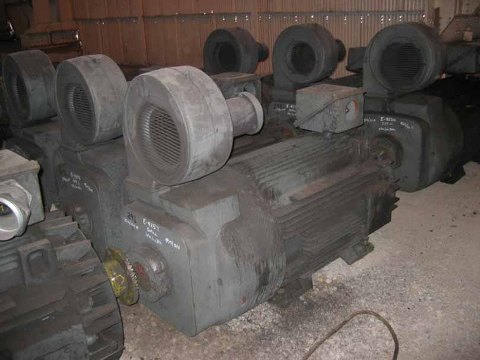

250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 509LL INDUCTION AC MOTOR
 "10344800000 250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 509LL INDUCTION AC MOTOR")
 "10344800000 250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 509LL INDUCTION AC MOTOR")
| INVENTORY ID | 10344800000 |
| TITLE | 250 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 509LL INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1190 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 509LL |
| ENCLOSURE | TETC-BV |
| SHAFT | SESS |
| DESIGN | A |
| CODE | G |
| TYPE | KAF |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60/6 |
| AMPERAGE | 300/300 |
| SERIAL NUMBER OR ID NUMBER | RL6181004 |
| MODEL NUMBER OR STYLE NUMBER | 5KAF509SN356P |
| WEIGHT | 3620 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 50 |
| LEADS FACING DRIVE END | TOP |
| SHAFT HEIGHT | 12.5 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 6 7/8 |
