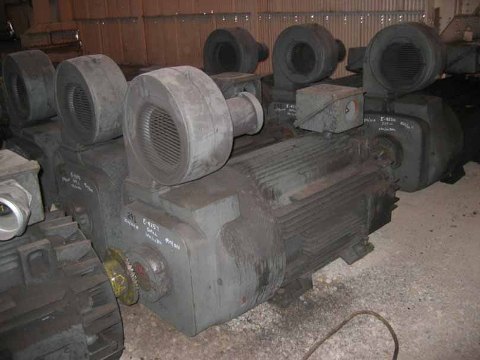

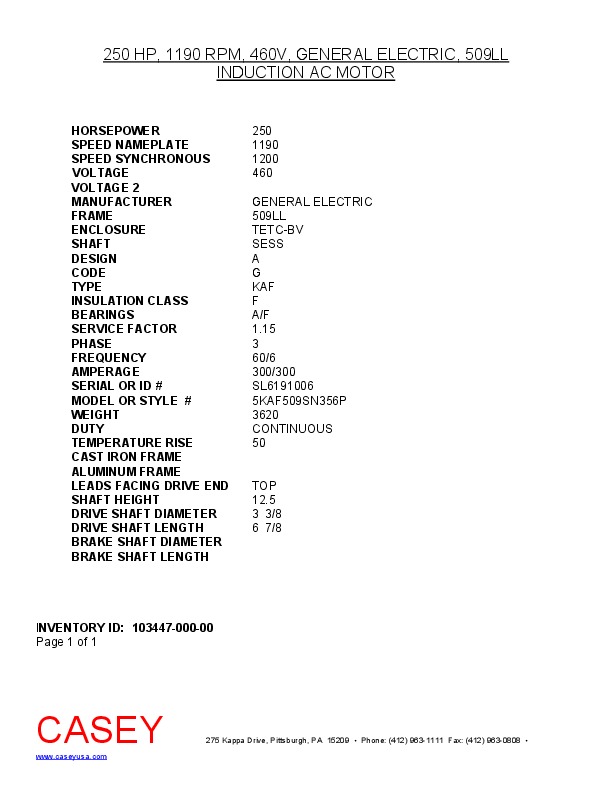

250 HP, 1190 RPM, 460 V, GENERAL ELECTRIC, 509LL, INDUCTION AC MOTOR
 "10344700000 250 HP, 1190 RPM, 460 V, GENERAL ELECTRIC, 509LL, INDUCTION AC MOTOR")
 "10344700000 250 HP, 1190 RPM, 460 V, GENERAL ELECTRIC, 509LL, INDUCTION AC MOTOR")
| INVENTORY ID | 10344700000 |
| TITLE | 250 HP, 1190 RPM, 460 V, GENERAL ELECTRIC, 509LL, INDUCTION AC MOTOR |
| HORSEPOWER | 250 |
| SPEED NAMEPLATE | 1190 |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 509LL |
| ENCLOSURE | TETC-BV |
| SHAFT | SESS |
| DESIGN | A |
| CODE | G |
| TYPE | KAF |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60/6 |
| AMPERAGE | 300/300 |
| SERIAL NUMBER OR ID NUMBER | SL6191006 |
| MODEL NUMBER OR STYLE NUMBER | 5KAF509SN356P |
| WEIGHT | 3620 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 50 |
| LEADS FACING DRIVE END | TOP |
| SHAFT HEIGHT | 12.5 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 6 7/8 |
