60 HP, 1750/2100 RPM, 500V, GENERAL ELECTRIC, CD409AT, STAB SHUNT USED DC MOTOR (R)
 "10331700000 60 HP, 1750/2100 RPM, 500V, GENERAL ELECTRIC, CD409AT, STAB SHUNT USED DC MOTOR (R)")

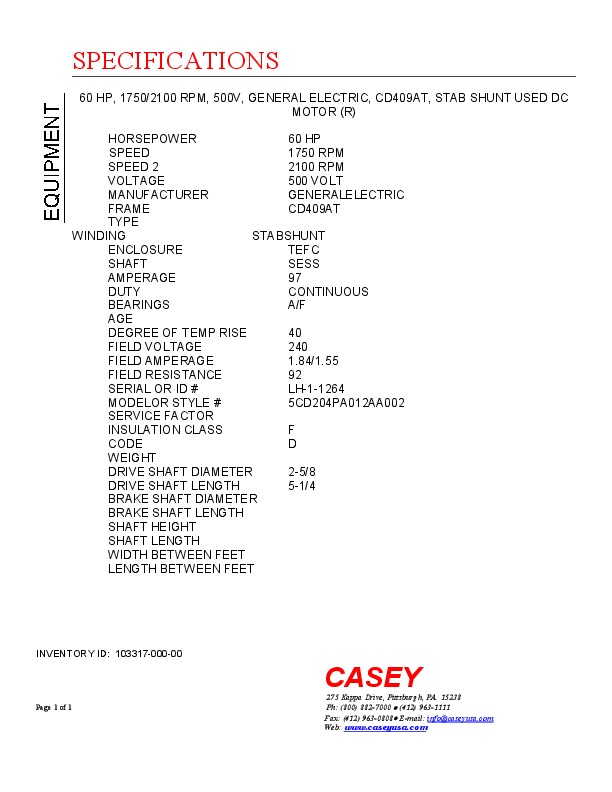

| INVENTORY ID | 10331700000 |
| TITLE | 60 HP, 1750/2100 RPM, 500V, GENERAL ELECTRIC, CD409AT, STAB SHUNT USED DC MOTOR (R) |
| HORSEPOWER | 60 HP |
| SPEED | 1750 RPM |
| SPEED 2 | 2100 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |

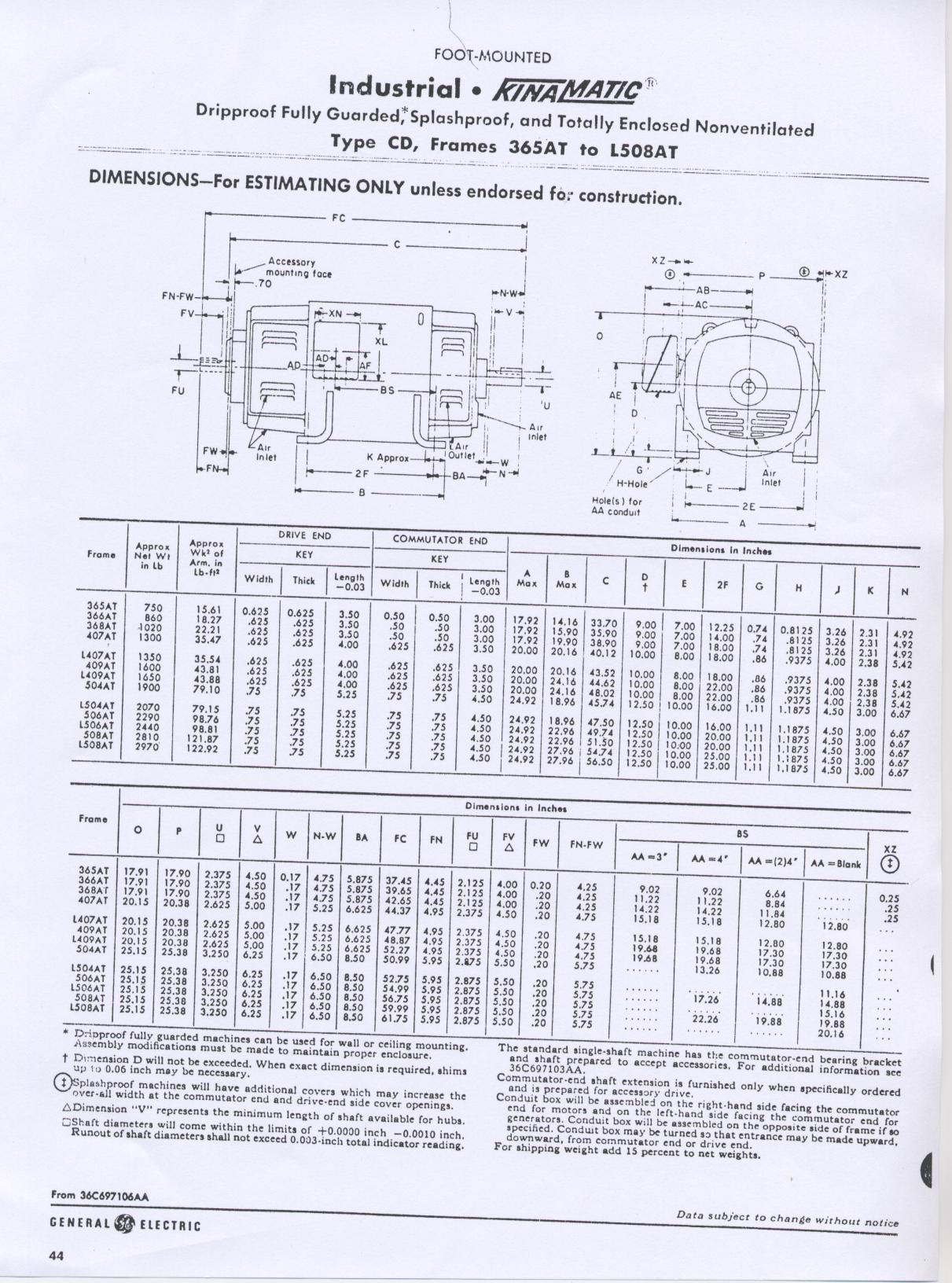

| FRAME | 409AT |
| WINDING | STABSHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 97 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 1.84/1.55 |
| FIELD RESISTANCE | 92 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | LH-1-1264 |
| MODEL NUMBER OR STYLE NUMBER | 5CD204PA012AA002 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2-5/8 |
| DRIVE SHAFT LENGTH | 5-1/4 |
