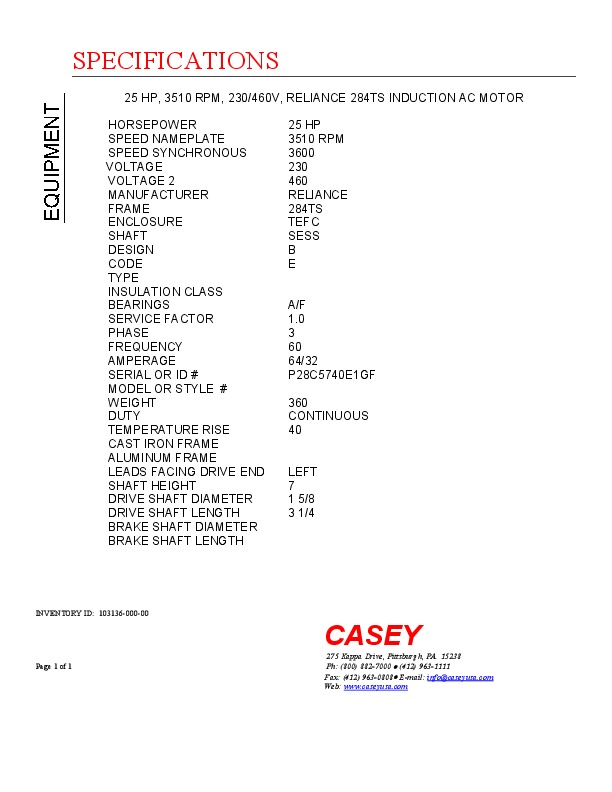

25 HP, 3510 RPM, 230/460V, RELIANCE 284TS INDUCTION AC MOTOR
| INVENTORY ID | 10313600000 |
| TITLE | 25 HP, 3510 RPM, 230/460V, RELIANCE 284TS INDUCTION AC MOTOR |
| HORSEPOWER | 25 HP |
| SPEED NAMEPLATE | 3510 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 284TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | E |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 64/32 |
| SERIAL NUMBER OR ID NUMBER | P28C5740E1GF |
| WEIGHT | 360 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 7 |
| DRIVE SHAFT DIAMETER | 1 5/8 |
| DRIVE SHAFT LENGTH | 3 1/4 |
