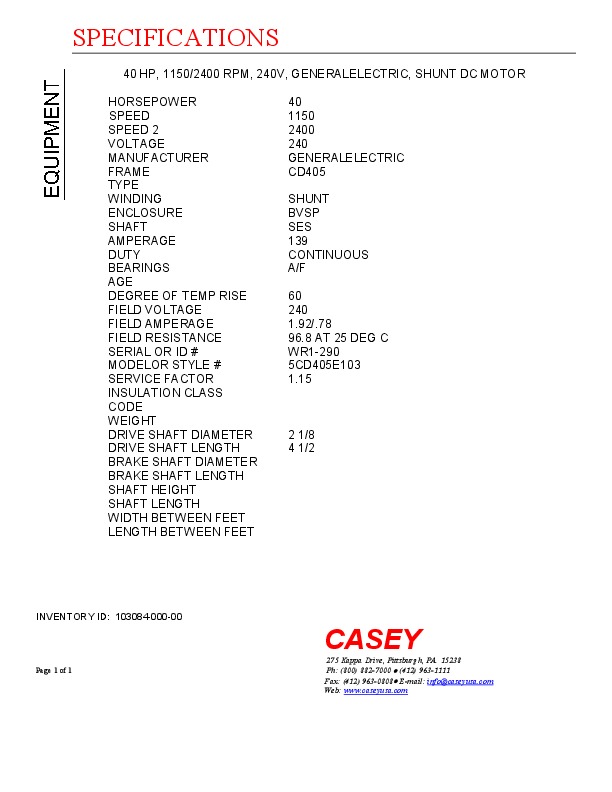

QTY (6) 40 HP, 1150/2400 RPM, 240V, GENERAL ELECTRIC, CD405, SHUNT USED DC MOTOR
 "10308400000 QTY (6) 40 HP, 1150/2400 RPM, 240V, GENERAL ELECTRIC, CD405, SHUNT USED DC MOTOR")
| INVENTORY ID | 10308400000 |
| TITLE | QTY (6) 40 HP, 1150/2400 RPM, 240V, GENERAL ELECTRIC, CD405, SHUNT USED DC MOTOR |
| HORSEPOWER | 40 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2400 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 405 |
| WINDING | SHUNT |
| ENCLOSURE | BVSP |
| SHAFT | SES |
| AMPERAGE | 139 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 1.92/.78 |
| FIELD RESISTANCE | 96.8 AT 25 DEG C |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | WR1-290 |
| MODEL NUMBER OR STYLE NUMBER | 5CD405E103 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIMENSION | 2 1/8 |
| DRIVE SHAFT LENGTH | 4 1/2 |
