50 HP, 500/1800 RPM, 240V, GENERAL ELECTRIC, CD506AT, SHUNT USED DC MOTOR
 "10307500000 50 HP, 500/1800 RPM, 240V, GENERAL ELECTRIC, CD506AT, SHUNT USED DC MOTOR")

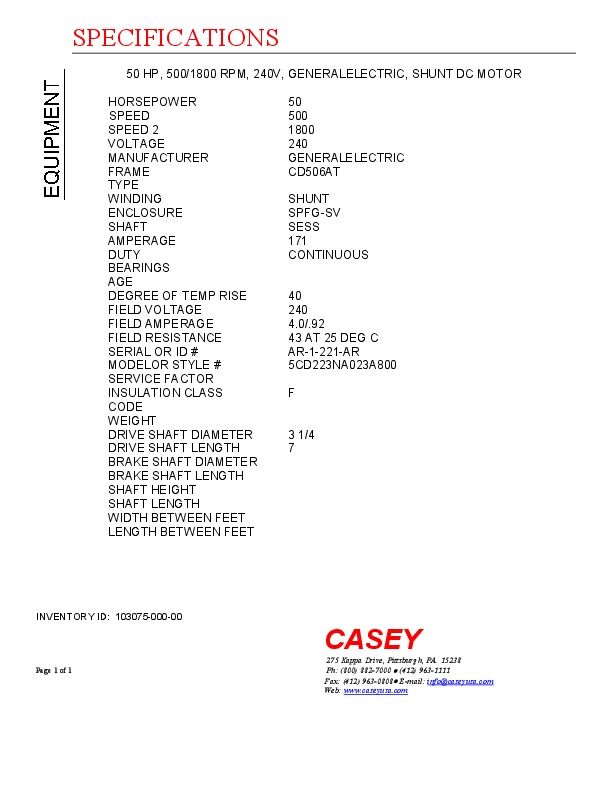

| INVENTORY ID | 10307500000 |
| TITLE | 50 HP, 500/1800 RPM, 240V, GENERAL ELECTRIC, CD506AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 50 HP |
| SPEED | 500 RPM |
| SPEED 2 | 1800 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 506AT |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-SV |
| SHAFT | SESS |
| AMPERAGE | 171 |
| DUTY | CONTINUOUS |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 4.0/.92 |
| FIELD RESISTANCE | 43 AT 25 DEG C |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | AR-1-221-AR |
| MODEL NUMBER OR STYLE NUMBER | 5CD223NA023A800 |
| INSULATION CLASS | F |
| DRIVE SHAFT DIMENSION | 3 1/4 |
| DRIVE SHAFT LENGTH | 7 |
