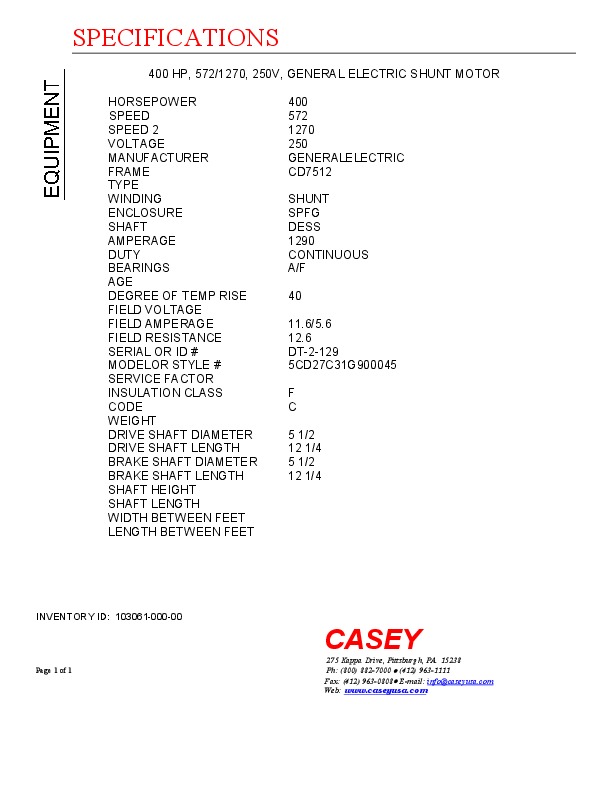

400 HP, 572/1270, 250V, GENERAL ELECTRIC, CD7512, SHUNT USED DC MOTOR
| INVENTORY ID | 10306100000 |
| TITLE | 400 HP, 572/1270, 250V, GENERAL ELECTRIC, CD7512, SHUNT USED DC MOTOR |
| HORSEPOWER | 400 HP |
| SPEED | 572 RPM |
| SPEED 2 | 1270 RPM |
| VOLTAGE | 250 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 7512 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG |
| SHAFT | DESS |
| AMPERAGE | 1290 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 11.6/5.6 |
| FIELD RESISTANCE | 12.6 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | DT-2-129 |
| MODEL NUMBER OR STYLE NUMBER | 5CD27C31G900045 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 5 1/2 |
| DRIVE SHAFT LENGTH | 12 1/4 |
| BRAKE SHAFT DIAMETER | 5 1/2 |
| BRAKE SHAFT LENGTH | 12 1/4 |
