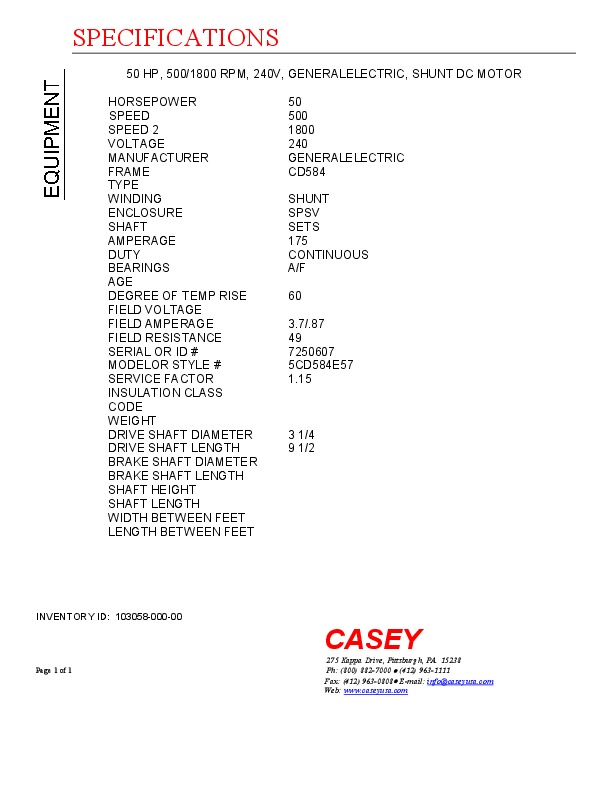

50 HP, 500/1800 RPM, 240V, GENERAL ELECTRIC, CD584, SHUNT USED DC MOTOR
 "10305800000 50 HP, 500/1800 RPM, 240V, GENERAL ELECTRIC, CD584, SHUNT USED DC MOTOR")
| INVENTORY ID | 10305800000 |
| TITLE | 50 HP, 500/1800 RPM, 240V, GENERAL ELECTRIC, CD584, SHUNT USED DC MOTOR |
| HORSEPOWER | 50 HP |
| SPEED | 500 RPM |
| SPEED 2 | 1800 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 584 |
| WINDING | SHUNT |
| ENCLOSURE | SPSV |
| SHAFT | SETS |
| AMPERAGE | 175 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 3.7/.87 |
| FIELD RESISTANCE | 49 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | 7250607 |
| MODEL NUMBER OR STYLE NUMBER | 5CD584E57 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIMENSION | 3 1/4 |
| DRIVE SHAFT LENGTH | 9 1/2 |
