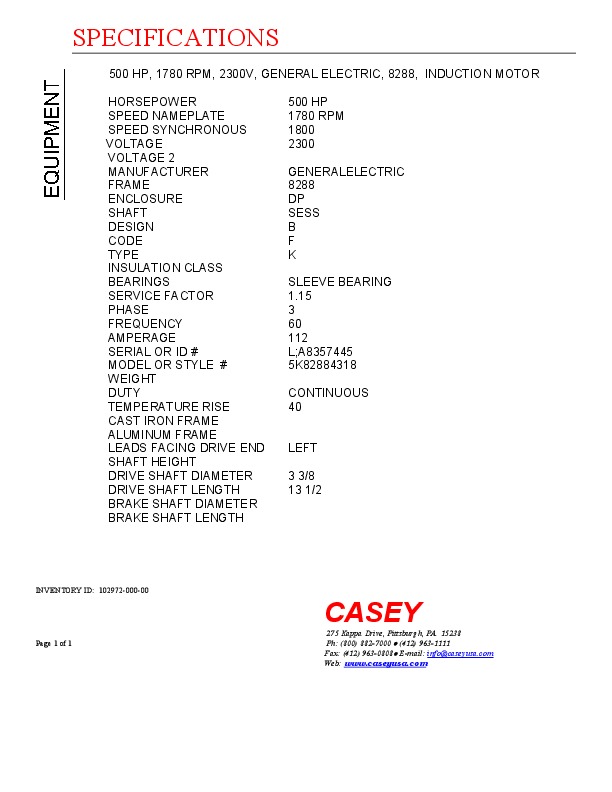

500 HP, 1780 RPM, 2300V, GENERAL ELECTRIC, 8288, INDUCTION AC MOTOR
| INVENTORY ID | 10297200000 |
| TITLE | 500 HP, 1780 RPM, 2300V, GENERAL ELECTRIC, 8288, INDUCTION AC MOTOR |
| HORSEPOWER | 500 HP |
| SPEED NAMEPLATE | 1780 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8288 |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | K |
| BEARINGS | SLEEVE BEARING |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 112 |
| SERIAL NUMBER OR ID NUMBER | L;A8357445 |
| MODEL NUMBER OR STYLE NUMBER | 5K82884318 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 13 1/2 |
