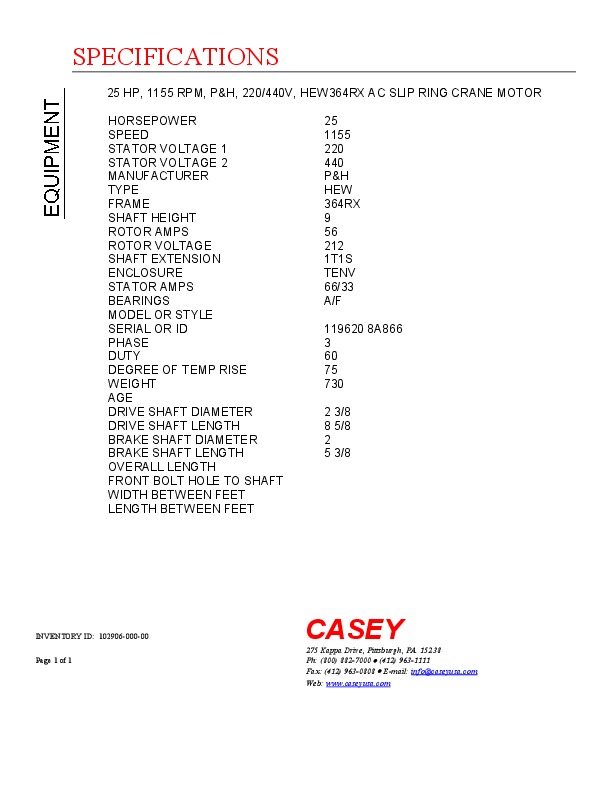

25 HP, 1155 RPM, P&H, 220/440V, HEW364RX AC SLIP RING CRANE MOTOR
| INVENTORY ID | 10290600000 |
| TITLE | 25 HP, 1155 RPM, P&H, 220/440V, HEW364RX AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 25 |
| SPEED | 1155 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 364RX |
| SHAFT HEIGHT | 9 |
| ROTOR AMPS | 56 |
| ROTOR VOLTS | 212 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 66/33 |
| BEARINGS | A/F |
| SERIAL NUMBER OR ID NUMBER | 119620 8A866 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 730 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 8 5/8 |
| BRAKE SHAFT DIAMETER | 2 |
| BRAKE SHAFT LENGTH | 5 3/8 |
