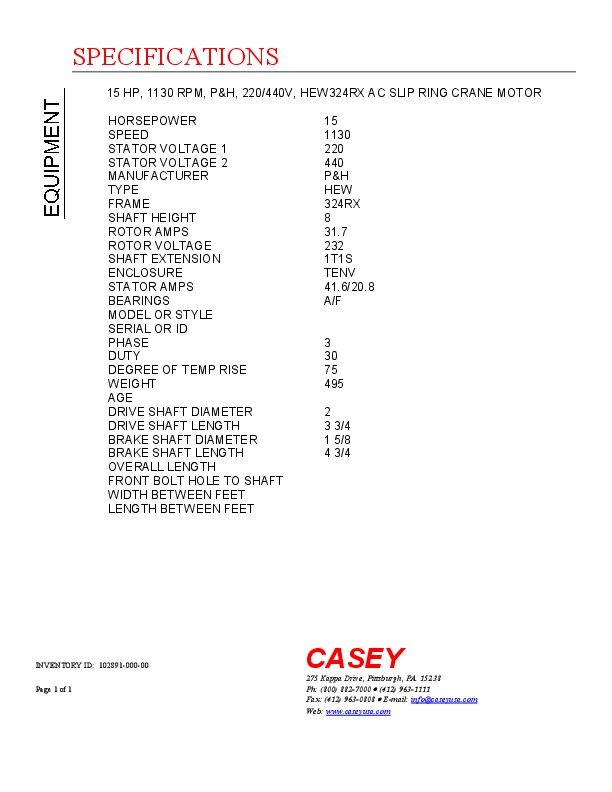

15 HP, 1130 RPM, P&H, 220/440V, HEW324RX AC SLIP RING CRANE MOTOR
| INVENTORY ID | 10289100000 |
| TITLE | 15 HP, 1130 RPM, P&H, 220/440V, HEW324RX AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 15 |
| SPEED | 1130 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 324RX |
| SHAFT HEIGHT | 8 |
| ROTOR AMPS | 31.7 |
| ROTOR VOLTS | 232 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 41.6/20.8 |
| BEARINGS | A/F |
| PHASE | 3 |
| DUTY (MINUTES) | 30 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 495 |
| DRIVE SHAFT DIAMETER | 2 |
| DRIVE SHAFT LENGTH | 3 3/4 |
| BRAKE SHAFT DIAMETER | 1 5/8 |
| BRAKE SHAFT LENGTH | 4 3/4 |
