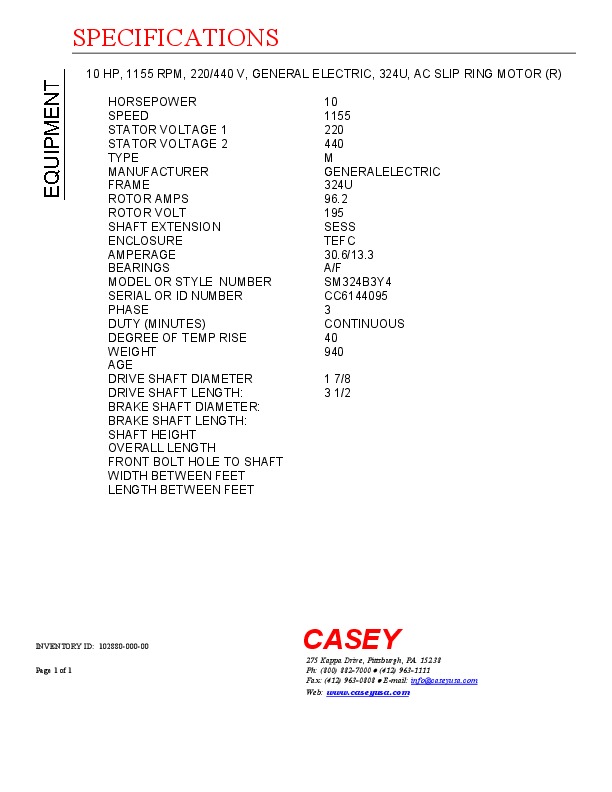

10 HP, 1155 RPM, 220/440 V, GENERAL ELECTRIC, 324U, AC SLIP RING MOTOR, WOUND ROTOR INDUCTION MOTOR (R)
| INVENTORY ID | 10288000000 |
| TITLE | 10 HP, 1155 RPM, 220/440 V, GENERAL ELECTRIC, 324U, AC SLIP RING MOTOR, WOUND ROTOR INDUCTION MOTOR (R) |
| HORSEPOWER | 10 |
| SPEED | 1155 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| TYPE | M |
| FRAME | 324U |
| MANUFACTURER | GENERAL ELECTRIC |
| ROTOR AMPS | 96.2 |
| ROTOR VOLTAGE | 195 |
| SHAFT EXTENSION | SESS |
| ENCLOSURE | TEFC |
| AMPERAGE | 30.6/13.3 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | SM324B3Y4 |
| SERIAL NUMBER OR ID NUMBER | CC6144095 |
| PHASE | 3 |
| DUTY (MINUTES) | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| WEIGHT | 940 |
