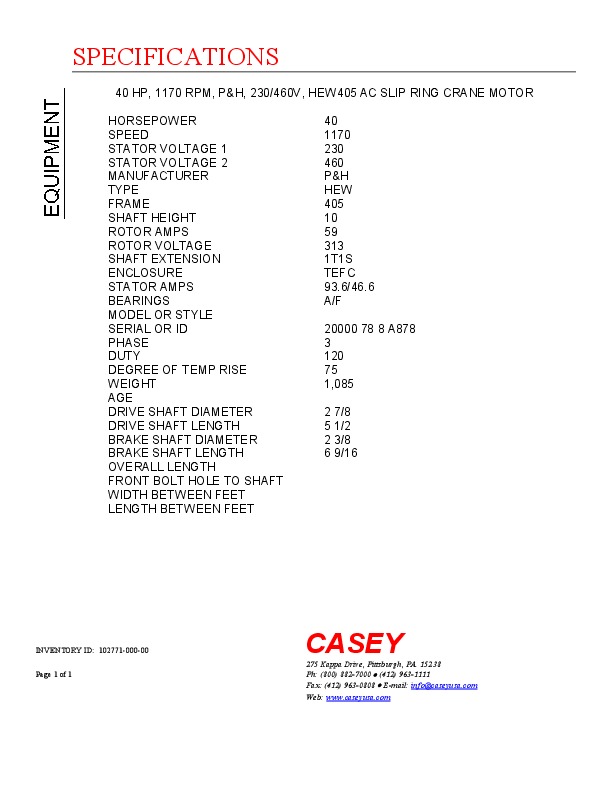

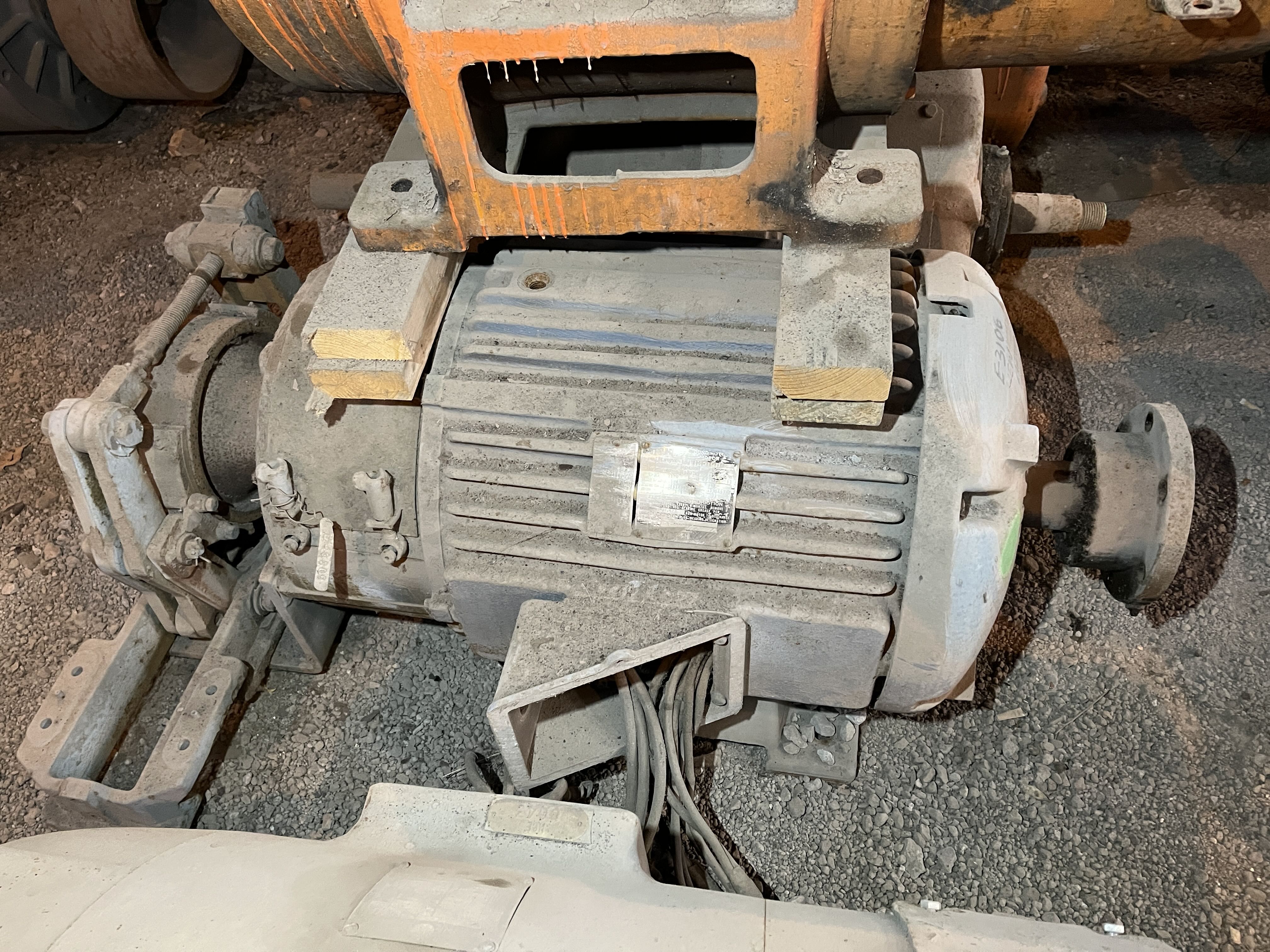

40 HP, 1170 RPM, P&H, 230/460V, HEW405 AC SLIP RING CRANE MOTOR
| INVENTORY ID | 10277100000 |
| TITLE | 40 HP, 1170 RPM, P&H, 230/460V, HEW405 AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 40 |
| SPEED | 1170 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 405 |
| SHAFT HEIGHT | 10 |
| ROTOR AMPS | 59 |
| ROTOR VOLTS | 313 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TEFC |
| STATOR AMPS | 93.6/46.6 |
| BEARINGS | A/F |

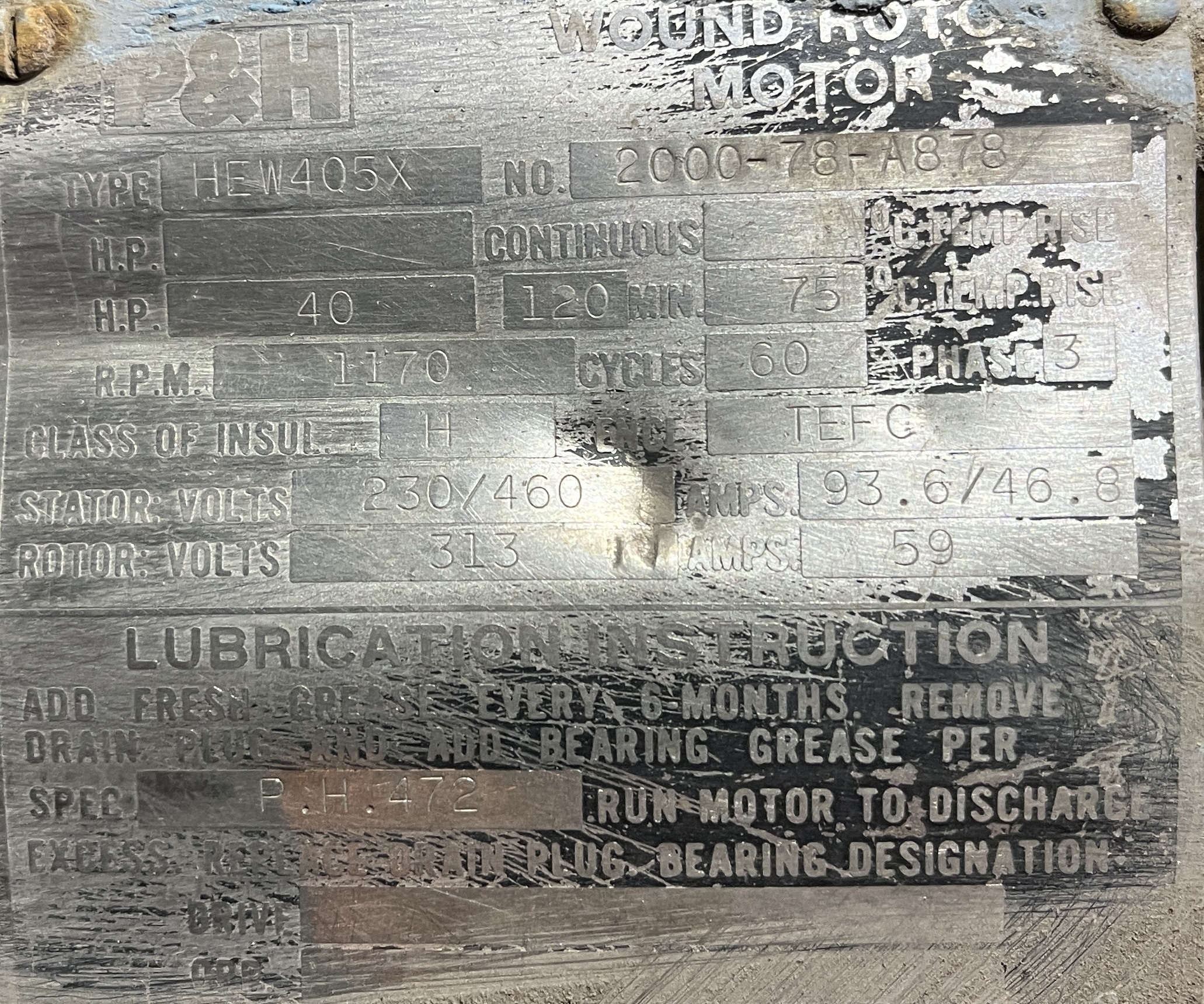

| SERIAL NUMBER OR ID NUMBER | 20000 78 8 A878 |
| PHASE | 3 |
| DUTY (MINUTES) | 120 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 1,085 |
| DRIVE SHAFT DIAMETER | 2 7/8 |
| DRIVE SHAFT LENGTH | 5 1/2 |
| BRAKE SHAFT DIAMETER | 2 3/8 |
| BRAKE SHAFT LENGTH | 6 9/16 |
