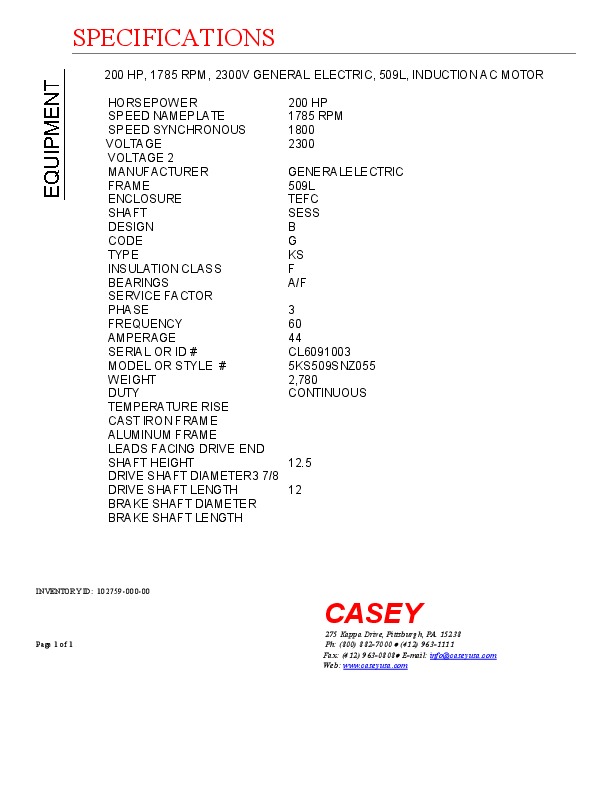

200 HP, 1785 RPM, 2300V GENERAL ELECTRIC, 509L, INDUCTION AC MOTOR
| INVENTORY ID | 10275900000 |
| TITLE | 200 HP, 1785 RPM, 2300V GENERAL ELECTRIC, 509L, INDUCTION AC MOTOR |
| HORSEPOWER | 200 HP |
| SPEED NAMEPLATE | 1785 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 509L |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 44 |
| SERIAL NUMBER OR ID NUMBER | CL6091003 |
| MODEL NUMBER OR STYLE NUMBER | 5KS509SNZ055 |
| WEIGHT | 2,780 |
| DUTY | CONTINUOUS |
| SHAFT HEIGHT | 12.5 |
| DRIVE SHAFT DIAMETER | 3 7/8 |
| DRIVE SHAFT LENGTH | 12 |
