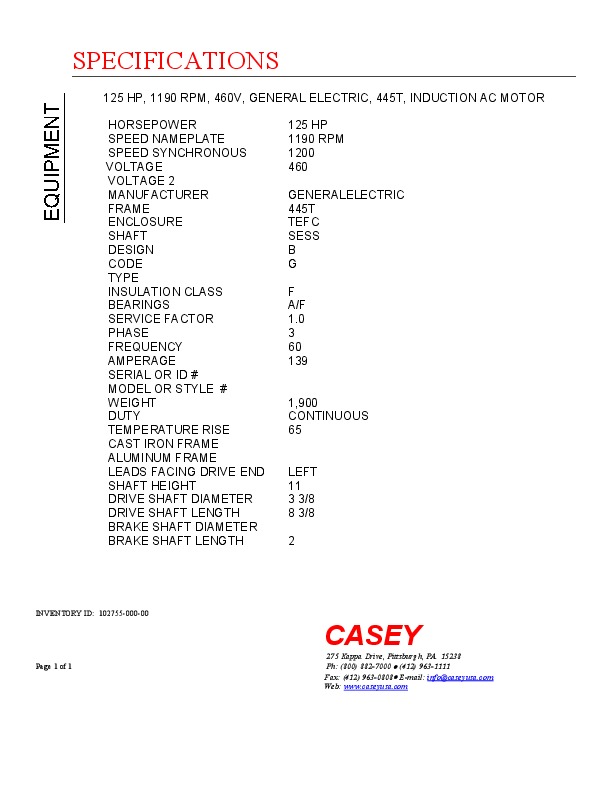

125 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR
 "10275500000 125 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
| INVENTORY ID | 10275500000 |
| TITLE | 125 HP, 1190 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR |
| HORSEPOWER | 125 HP |
| SPEED NAMEPLATE | 1190 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 139 |
| WEIGHT | 1,900 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 65 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 8 3/8 |
| BRAKE SHAFT LENGTH | 2 |
