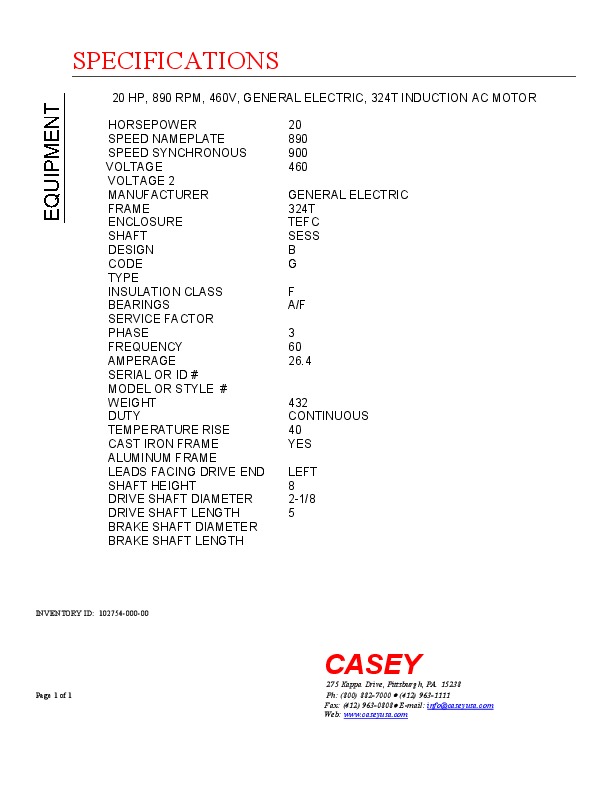

20 HP, 890 RPM, 460V, GENERAL ELECTRIC, 324T INDUCTION AC MOTOR
| INVENTORY ID | 10275400000 |
| TITLE | 20 HP, 890 RPM, 460V, GENERAL ELECTRIC, 324T INDUCTION AC MOTOR |
| HORSEPOWER | 20 HP |
| SPEED NAMEPLATE | 890 RPM |
| SPEED SYNCHRONOUS | 900 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 324T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 26.4 |
| WEIGHT | 432 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 8 |
| DRIVE SHAFT DIAMETER | 2-1/8 |
| DRIVE SHAFT LENGTH | 5 |
