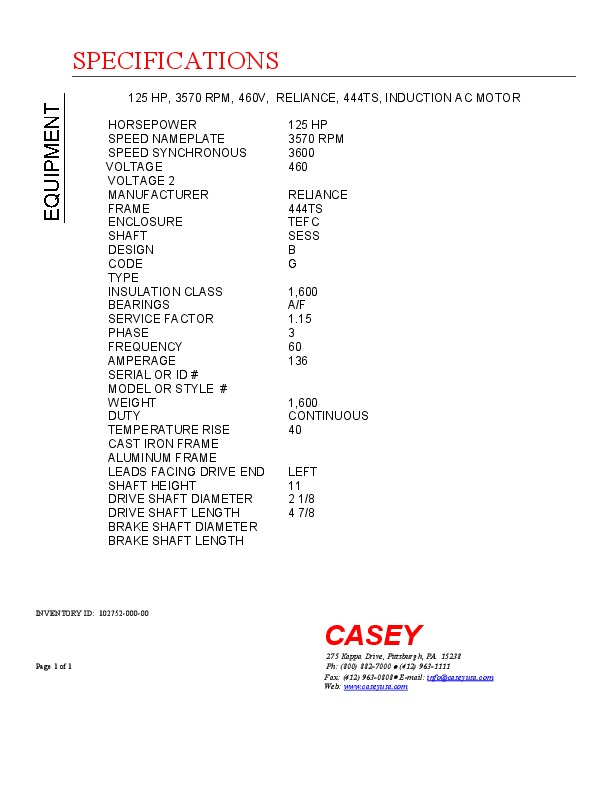

125 HP, 3570 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR
| INVENTORY ID | 10275200000 |
| TITLE | 125 HP, 3570 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR |
| HORSEPOWER | 125 HP |
| SPEED NAMEPLATE | 3570 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 444TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | 1,600 |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 136 |
| WEIGHT | 1,600 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 2 1/8 |
| DRIVE SHAFT LENGTH | 4 7/8 |
