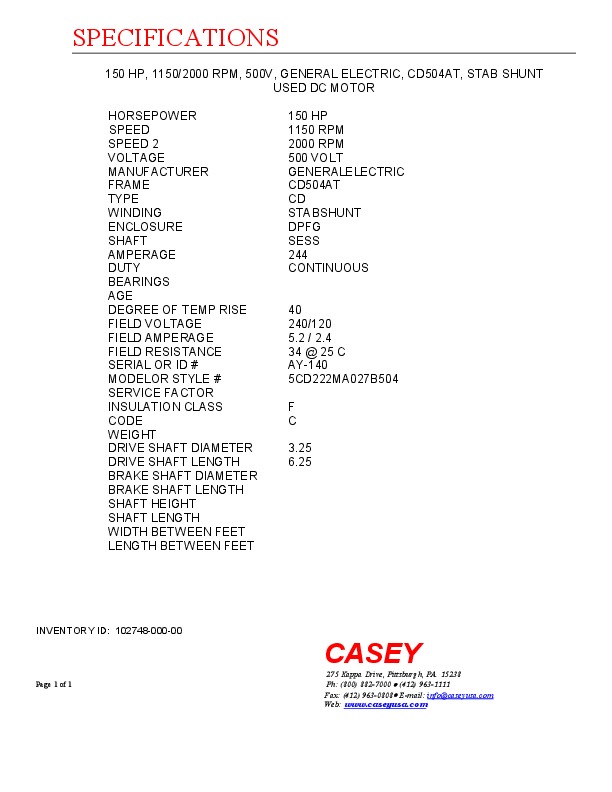

150 HP, 1150/2000 RPM, 500V, GENERAL ELECTRIC, CD504AT, STAB SHUNT USED DC MOTOR
 "10274800000 150 HP, 1150/2000 RPM, 500V, GENERAL ELECTRIC, CD504AT, STAB SHUNT USED DC MOTOR")
| INVENTORY ID | 10274800000 |
| TITLE | 150 HP, 1150/2000 RPM, 500V, GENERAL ELECTRIC, CD504AT, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 150 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 504AT |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | DPFG |
| SHAFT | SESS |
| AMPERAGE | 244 |
| DUTY | CONTINUOUS |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 5.2 / 2.4 |
| FIELD RESISTANCE | 34 @ 25 C |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | AY-140 |
| MODEL NUMBER OR STYLE NUMBER | 5CD222MA027B504 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 3.25 |
| DRIVE SHAFT LENGTH | 6.25 |
