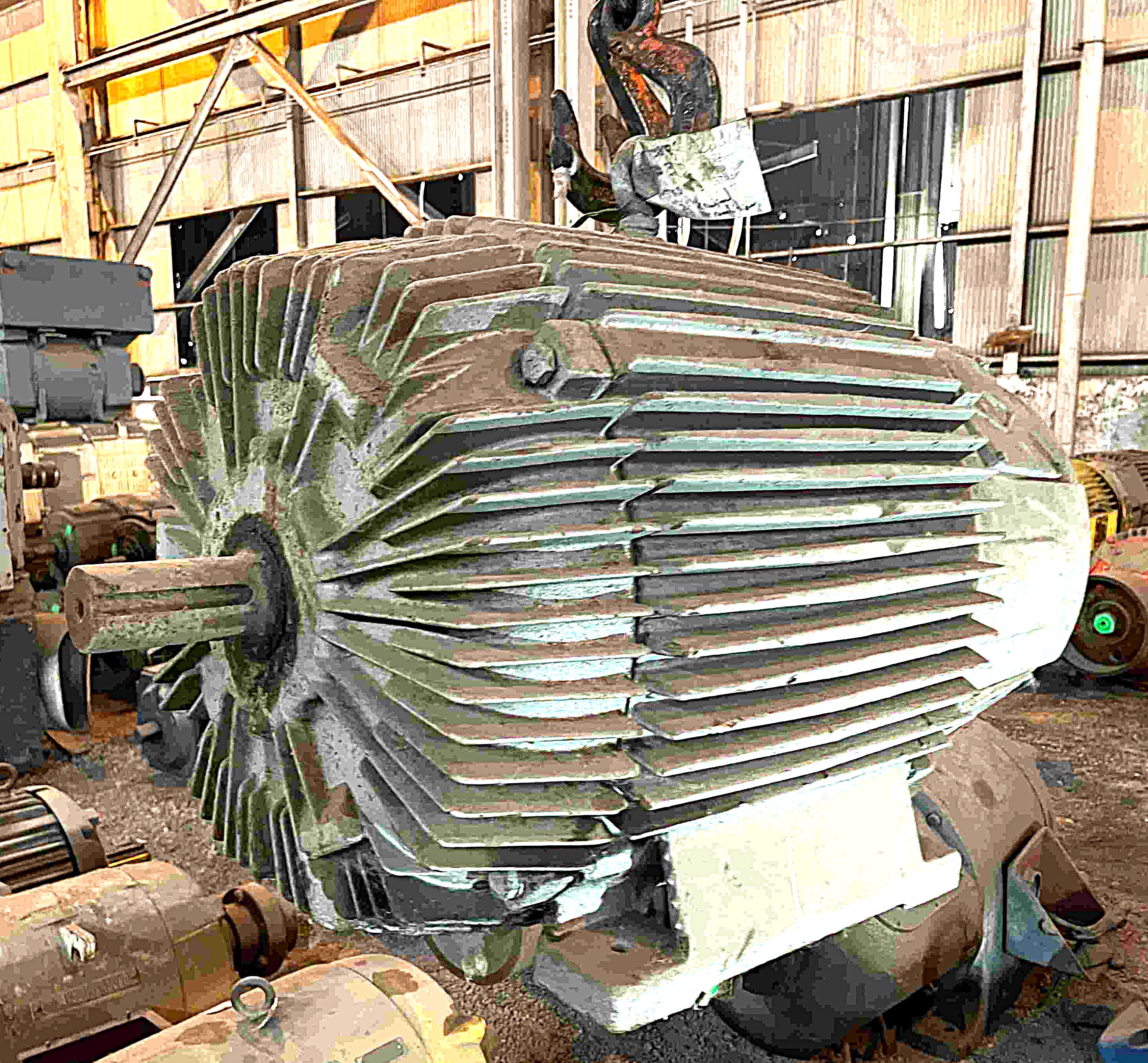

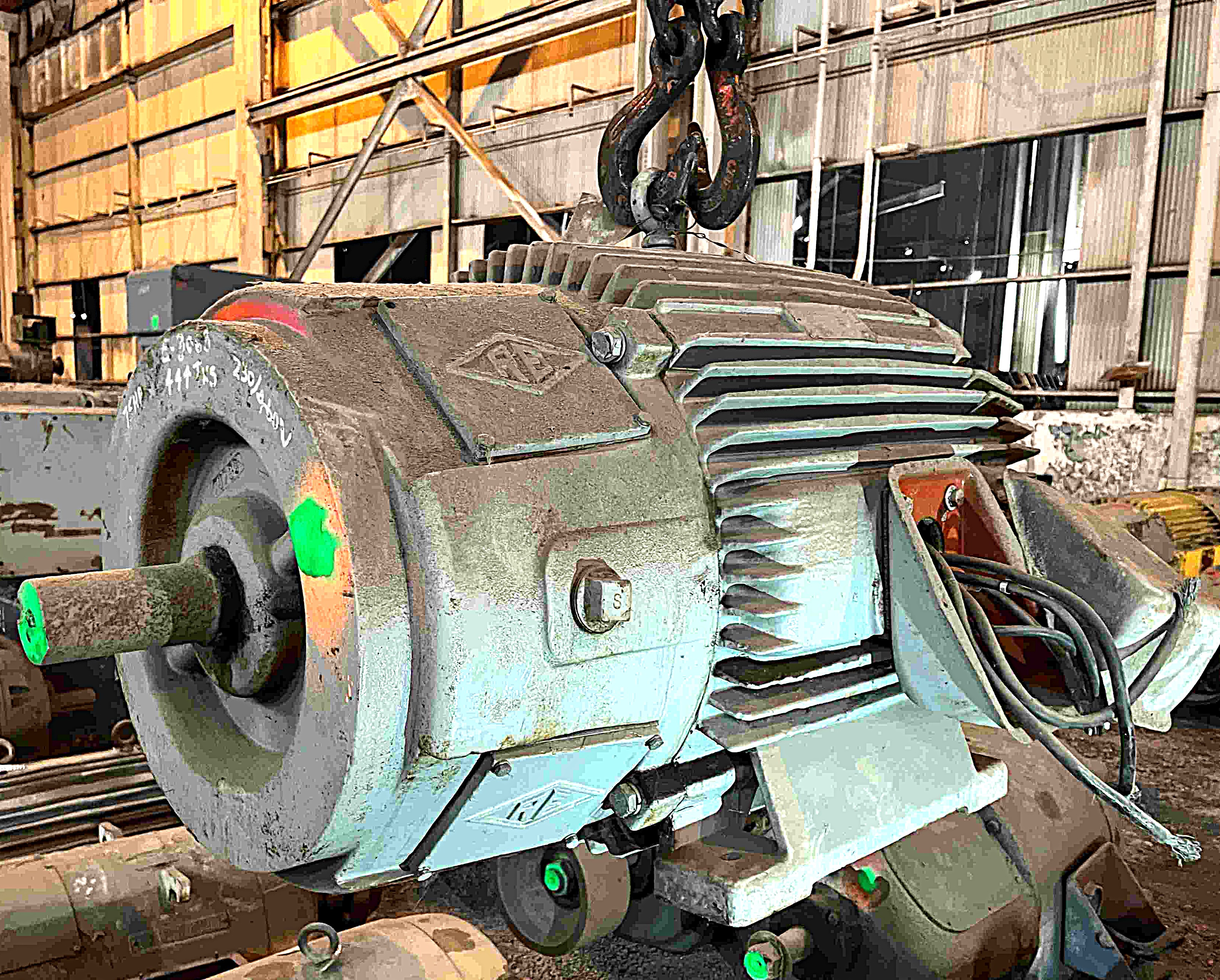

75 HP, 1200 RPM, ZENAR, 230/460V, A000444TXS AC SLIP RING CRANE MOTOR
 "10273700000 75 HP, 1200 RPM, ZENAR, 230/460V, A000444TXS AC SLIP RING CRANE MOTOR")
 "10273700000 75 HP, 1200 RPM, ZENAR, 230/460V, A000444TXS AC SLIP RING CRANE MOTOR")
 "10273700000 75 HP, 1200 RPM, ZENAR, 230/460V, A000444TXS AC SLIP RING CRANE MOTOR")

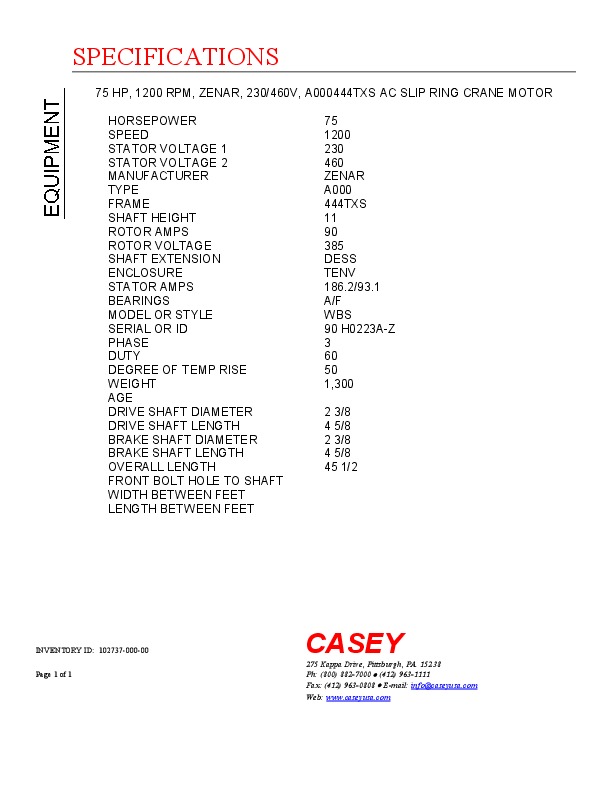

| INVENTORY ID | 10273700000 |
| TITLE | 75 HP, 1200 RPM, ZENAR, 230/460V, A000444TXS AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 75 |
| SPEED | 1200 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | ZENAR |
| TYPE | A000 |
| FRAME | 444TXS |
| SHAFT HEIGHT | 11 |
| ROTOR AMPS | 90 |
| ROTOR VOLTS | 385 |
| SHAFT EXTENSION | DESS |
| ENCLOSURE | TENV |
| STATOR AMPS | 186.2/93.1 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | WBS |

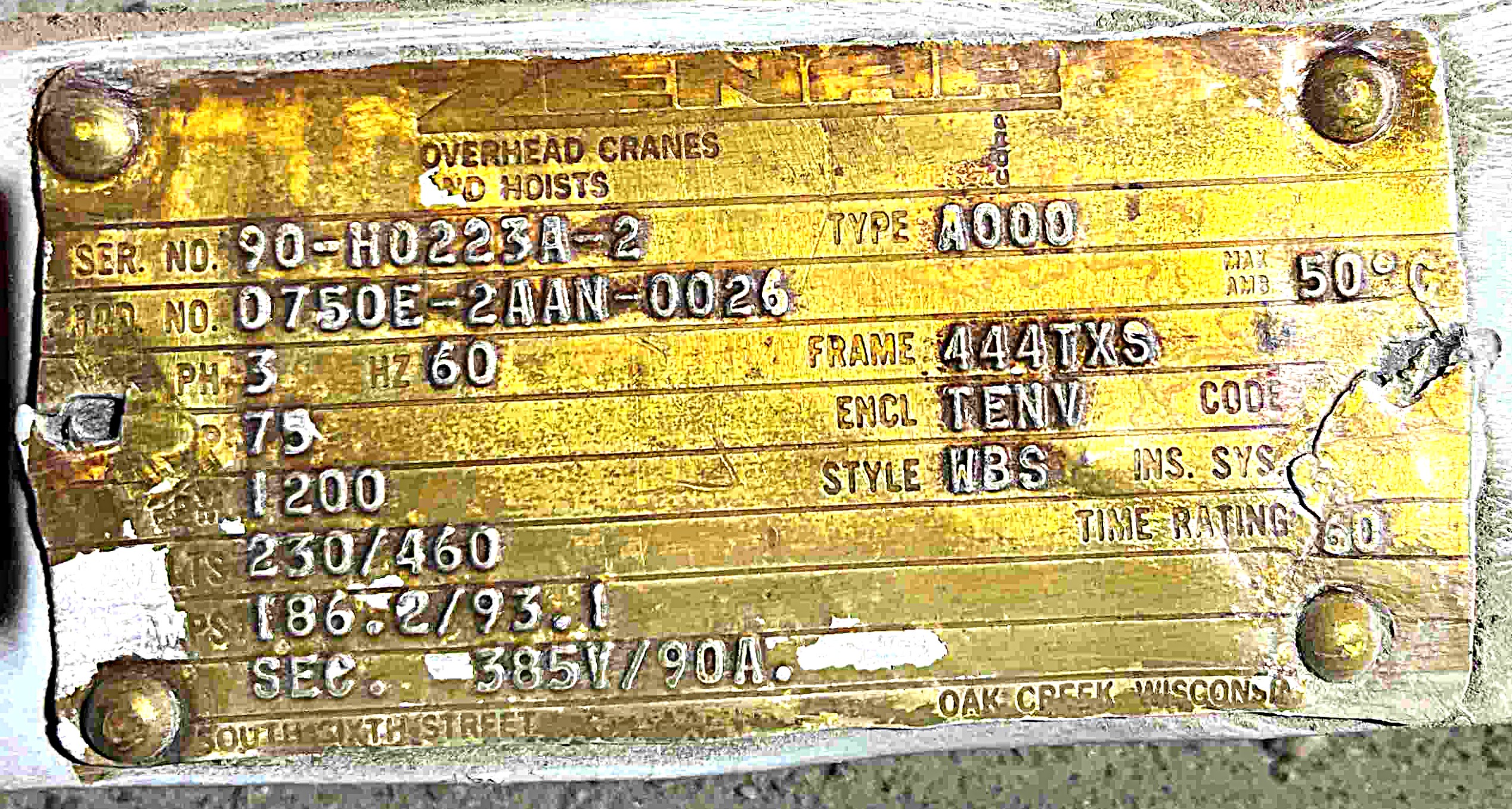

| SERIAL NUMBER OR ID NUMBER | 90 H0223A-Z |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 50 |
| WEIGHT | 1,300 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 4 5/8 |
| BRAKE SHAFT DIAMETER | 2 3/8 |
| BRAKE SHAFT LENGTH | 4 5/8 |
| OVERALL LENGTH | 45 1/2 |
| WIDTH BETWEEN FEET | 18" |
| LENGTH BETWEEN FEET | 14 1/2" |
