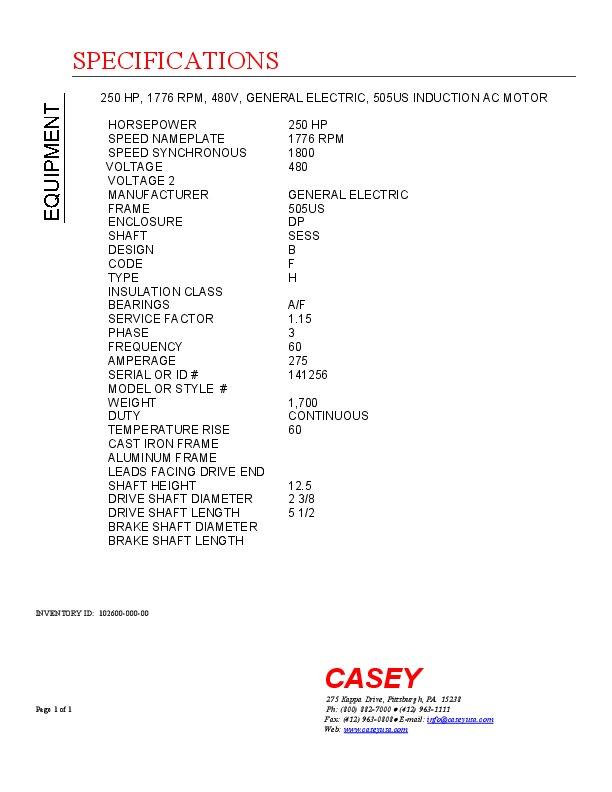

250 HP, 1776 RPM, 480V, GENERAL ELECTRIC, 505US INDUCTION AC MOTOR
 "10260000000 250 HP, 1776 RPM, 480V, GENERAL ELECTRIC, 505US INDUCTION AC MOTOR")
| INVENTORY ID | 10260000000 |
| TITLE | 250 HP, 1776 RPM, 480V, GENERAL ELECTRIC, 505US INDUCTION AC MOTOR |
| HORSEPOWER | 250 HP |
| SPEED NAMEPLATE | 1776 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 480 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 505US |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | H |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 275 |
| SERIAL NUMBER OR ID NUMBER | 141256 |
| WEIGHT | 1,700 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 60 |
| SHAFT HEIGHT | 12.5 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 5 1/2 |
