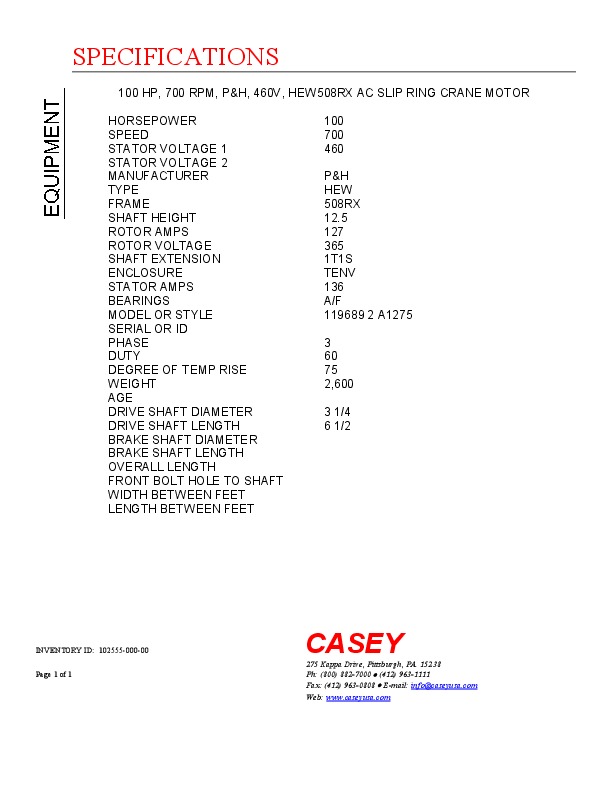

100 HP, 700 RPM, P&H, 460V, HEW508RX AC SLIP RING CRANE MOTOR
 "10255500000 100 HP, 700 RPM, P&H, 460V, HEW508RX AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 10255500000 |
| TITLE | 100 HP, 700 RPM, P&H, 460V, HEW508RX AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 100 |
| SPEED | 700 |
| STATOR VOLTAGE 1 | 460 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 508RX |
| SHAFT HEIGHT | 12.5 |
| ROTOR AMPS | 127 |
| ROTOR VOLTS | 365 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 136 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 119689 2 A1275 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 75 |
| WEIGHT | 2,600 |
| DRIVE SHAFT DIAMETER | 3 1/4 |
| DRIVE SHAFT LENGTH | 6 1/2 |
