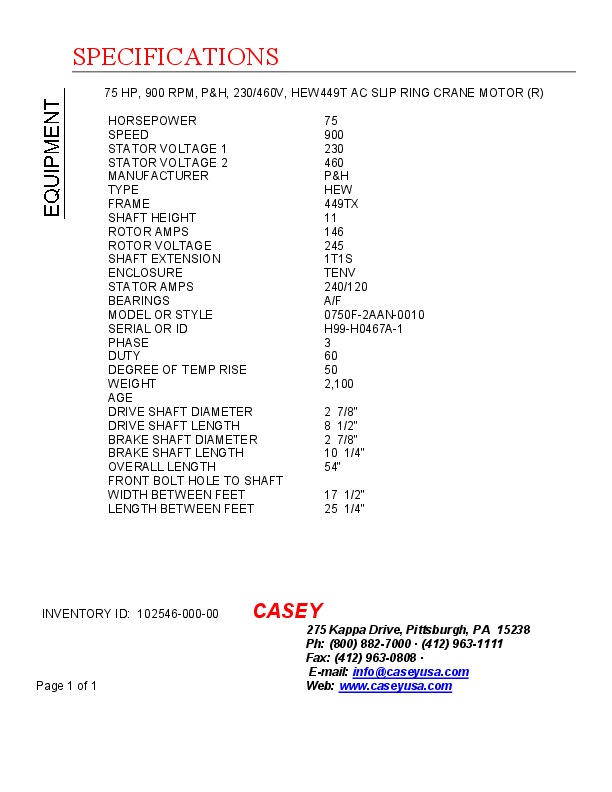

75 HP, 900 RPM, P&H, 230/460V, HEW449T AC SLIP RING CRANE MOTOR (R)
 "10254600000 75 HP, 900 RPM, P&H, 230/460V, HEW449T AC SLIP RING CRANE MOTOR (R)")
| INVENTORY ID | 10254600000 |
| TITLE | 75 HP, 900 RPM, P&H, 230/460V, HEW449T AC SLIP RING CRANE MOTOR (R) |
| HORSEPOWER | 75 |
| SPEED | 900 |
| STATOR VOLTAGE 1 | 230 |
| STATOR VOLTAGE 2 | 460 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 449TX |
| SHAFT HEIGHT | 11 |
| ROTOR AMPS | 146 |
| ROTOR VOLTS | 245 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 240/120 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 0750F-2AAN-0010 |
| SERIAL NUMBER OR ID NUMBER | H99-H0467A-1 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 50 |
| WEIGHT | 2,100 |
| DRIVE SHAFT DIAMETER | 2 7/8" |
| DRIVE SHAFT LENGTH | 8 1/2" |
| BRAKE SHAFT DIAMETER | 2 7/8" |
| BRAKE SHAFT LENGTH | 10 1/4" |
| OVERALL LENGTH | 54" |
| WIDTH BETWEEN FEET | 17 1/2" |
| LENGTH BETWEEN FEET | 25 1/4" |
