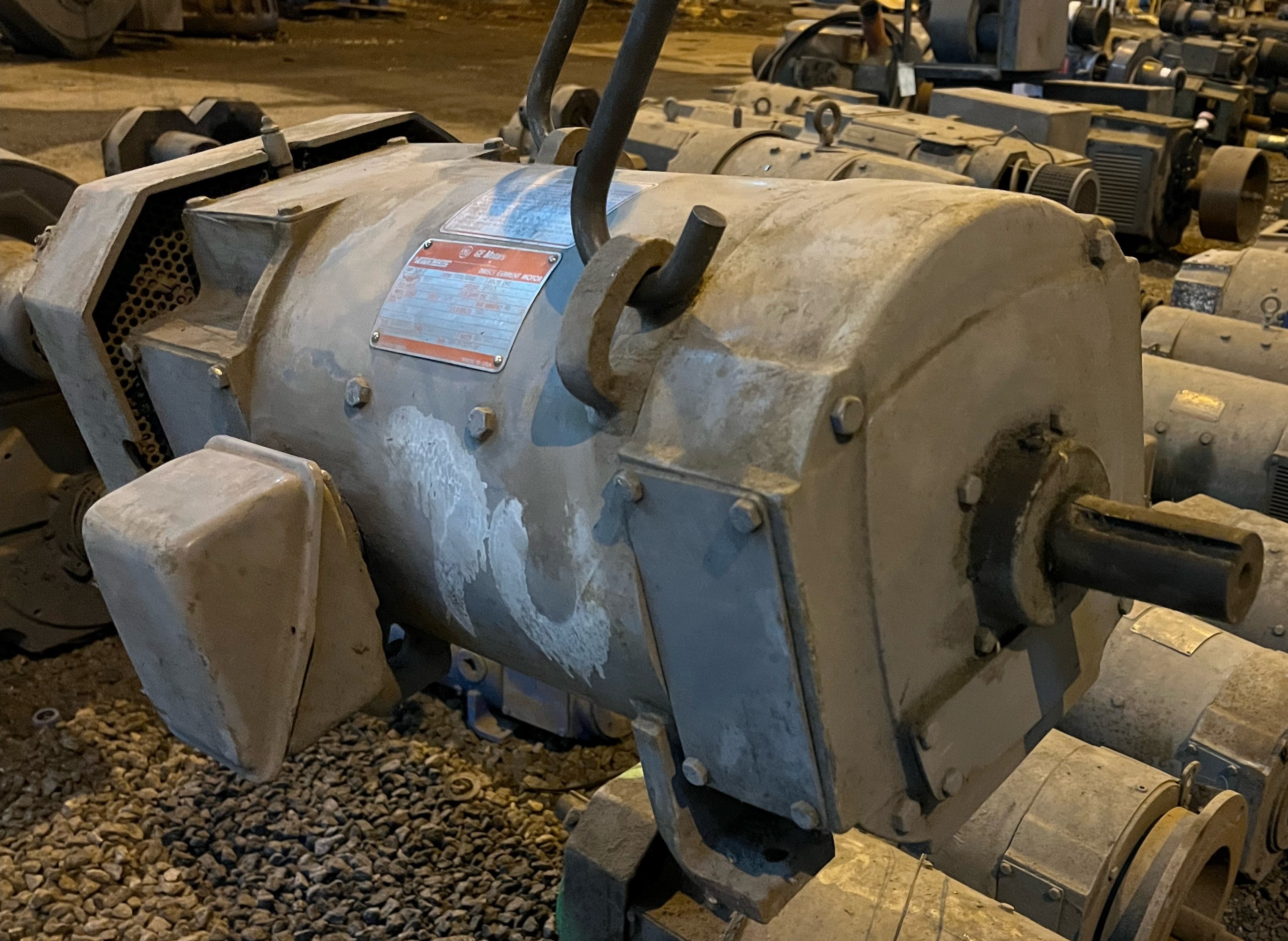

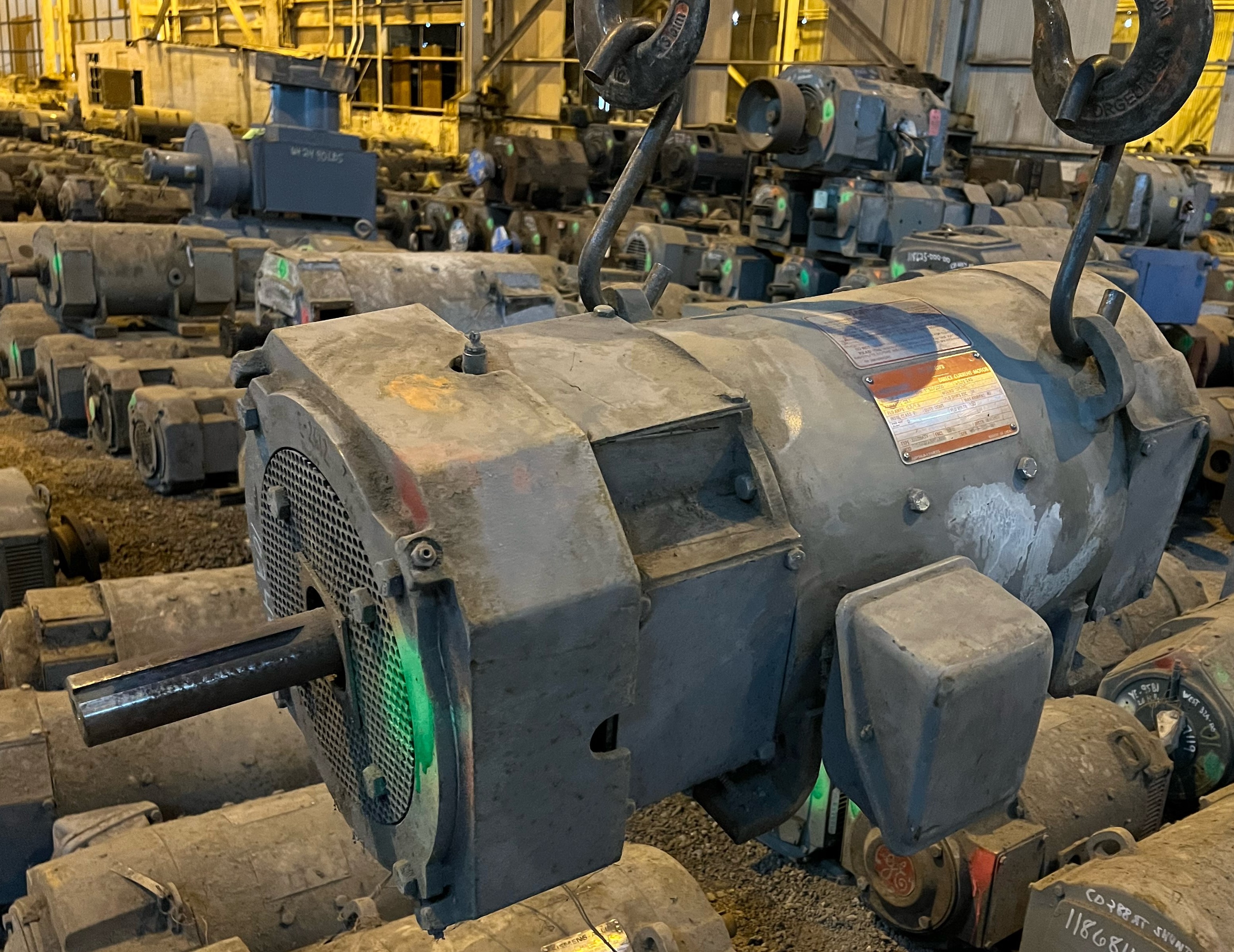

7.5 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD259ATY, SHUNT USED DC MOTOR
 "10248600000 7.5 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD259ATY, SHUNT USED DC MOTOR")
 "10248600000 7.5 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD259ATY, SHUNT USED DC MOTOR")
 "10248600000 7.5 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD259ATY, SHUNT USED DC MOTOR")

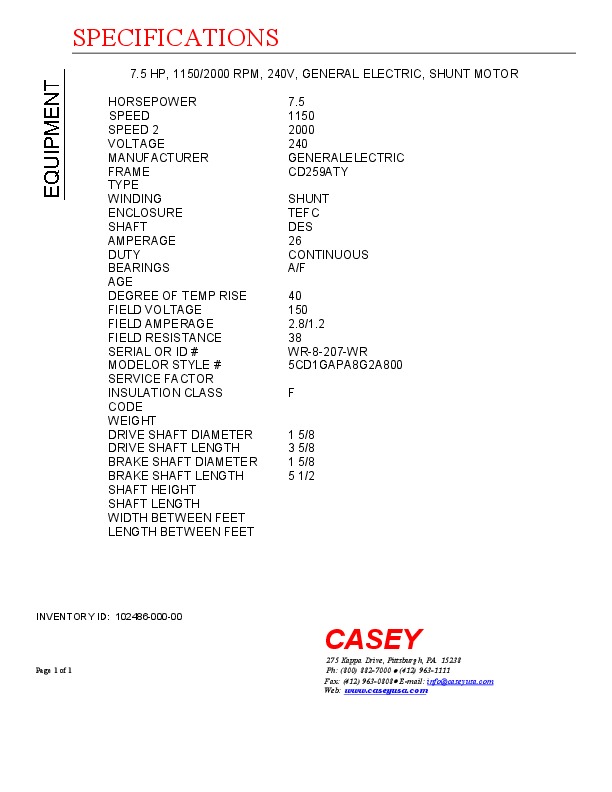

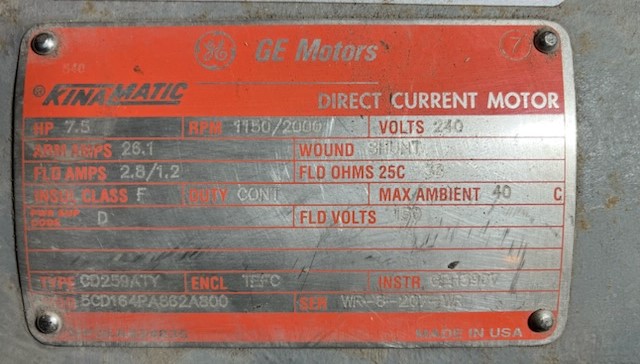

| INVENTORY ID | 10248600000 |
| TITLE | 7.5 HP, 1150/2000 RPM, 240V, GENERAL ELECTRIC, CD259ATY, SHUNT USED DC MOTOR |
| HORSEPOWER | 7.5 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 259ATY |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | DES |
| AMPERAGE | 26 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 150 |
| FIELD AMPERAGE | 2.8/1.2 |
| FIELD RESISTANCE | 38 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | WR-8-207-WR |
| MODEL NUMBER OR STYLE NUMBER | 5CD1GAPA8G2A800 |
| INSULATION CLASS | F |
| WEIGHT | 450 LBS. |
| DRIVE SHAFT DIMENSION | 1 5/8 |
| DRIVE SHAFT LENGTH | 3 5/8 |
| BRAKE SHAFT DIAMETER | 1 5/8 |
| BRAKE SHAFT LENGTH | 5 1/2 |
