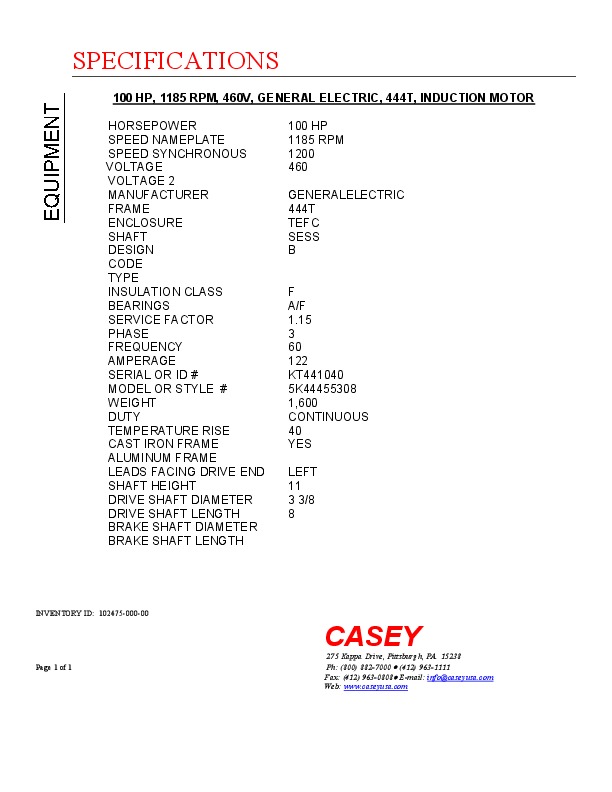

100 HP, 1185 RPM, 460V, GENERAL ELECTRIC, 444T, INDUCTION AC MOTOR
| INVENTORY ID | 10247500000 |
| TITLE | 100 HP, 1185 RPM, 460V, GENERAL ELECTRIC, 444T, INDUCTION AC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED NAMEPLATE | 1185 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 444T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 122 |
| SERIAL NUMBER OR ID NUMBER | KT441040 |
| MODEL NUMBER OR STYLE NUMBER | 5K44455308 |
| WEIGHT | 1,600 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| CAST IRON FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 8 |
