400HP, 1150/1500RPM, 500V, GENERAL ELECTRIC, CD685AS, STAB SHUNT USED DC MOTOR
 "10242400000 400HP, 1150/1500RPM, 500V, GENERAL ELECTRIC, CD685AS, STAB SHUNT USED DC MOTOR")
 "10242400000 400HP, 1150/1500RPM, 500V, GENERAL ELECTRIC, CD685AS, STAB SHUNT USED DC MOTOR")
 "10242400000 400HP, 1150/1500RPM, 500V, GENERAL ELECTRIC, CD685AS, STAB SHUNT USED DC MOTOR")
 "10242400000 400HP, 1150/1500RPM, 500V, GENERAL ELECTRIC, CD685AS, STAB SHUNT USED DC MOTOR")

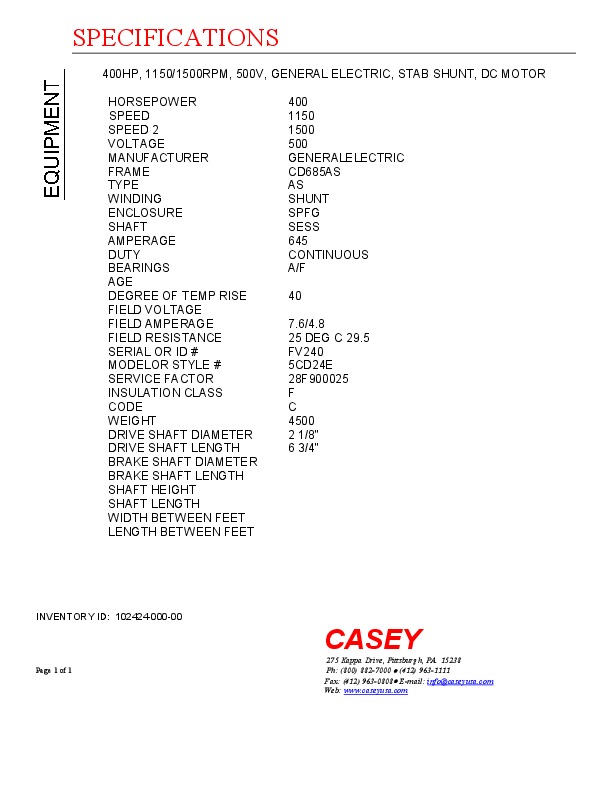

| INVENTORY ID | 10242400000 |
| TITLE | 400HP, 1150/1500RPM, 500V, GENERAL ELECTRIC, CD685AS, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 400 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 1500 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 685AS |
| TYPE | AS |
| WINDING | STAB SHUNT |
| ENCLOSURE | SPFG |
| SHAFT | SESS |
| AMPERAGE | 645 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 7.6/4.8 |
| FIELD RESISTANCE | 25 DEG C 29.5 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | FV240 |
| MODEL NUMBER OR STYLE NUMBER | 5CD24E |
| SERVICE FACTOR | 28F900025 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 4500 |
| DRIVE SHAFT DIMENSION | 2 1/8" |
| DRIVE SHAFT LENGTH | 6 3/4" |
