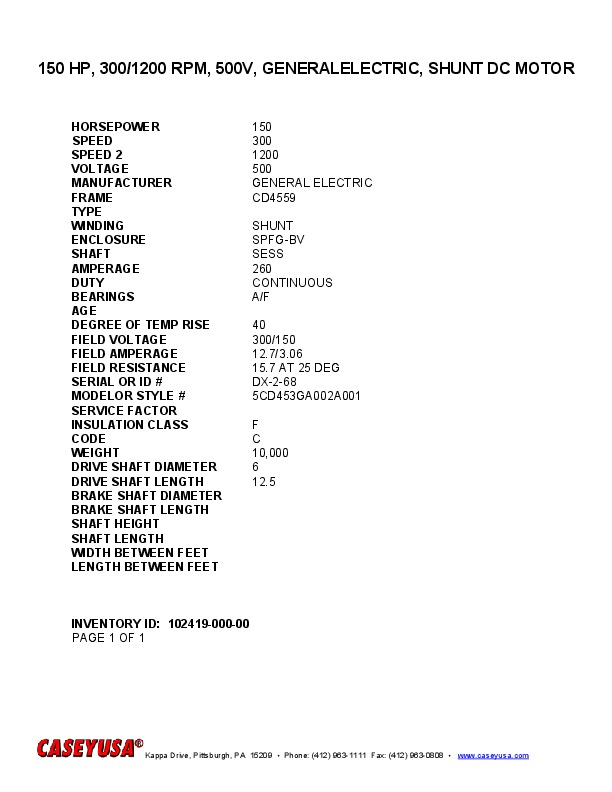

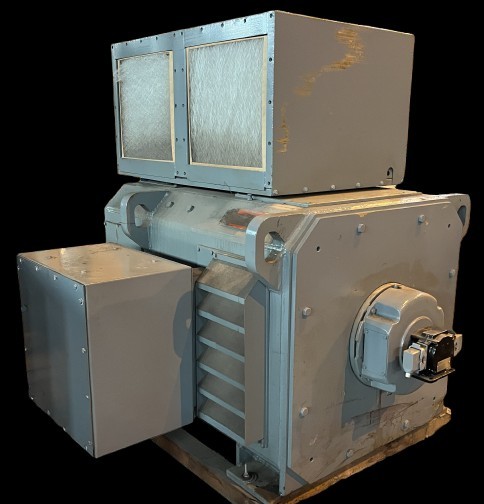

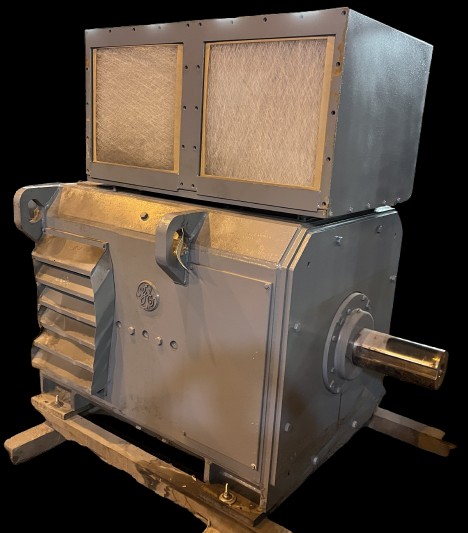

150 HP, 300/1200 RPM, 500V, GENERAL ELECTRIC SHUNT DC MOTOR
| INVENTORY ID | 10241900000 |
| TITLE | 150 HP, 300/1200 RPM, 500V, GENERAL ELECTRIC SHUNT DC MOTOR |
| HORSEPOWER | 150 |
| SPEED | 300 |
| SPEED 2 | 1200 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 4559 |
| WINDING | SHUNT |
| ENCLOSURE | SPFG-BV |
| SHAFT | SESS |
| AMPERAGE | 260 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300/150 |
| FIELD AMPERAGE | 12.7/3.06 |
| FIELD RESISTANCE | 15.7 AT 25 DEG |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | DX-2-68 |
| MODEL NUMBER OR STYLE NUMBER | 5CD453GA002A001 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 10,000 |
| DRIVE SHAFT DIMENSION | 6 |
| DRIVE SHAFT LENGTH | 12.5 |
