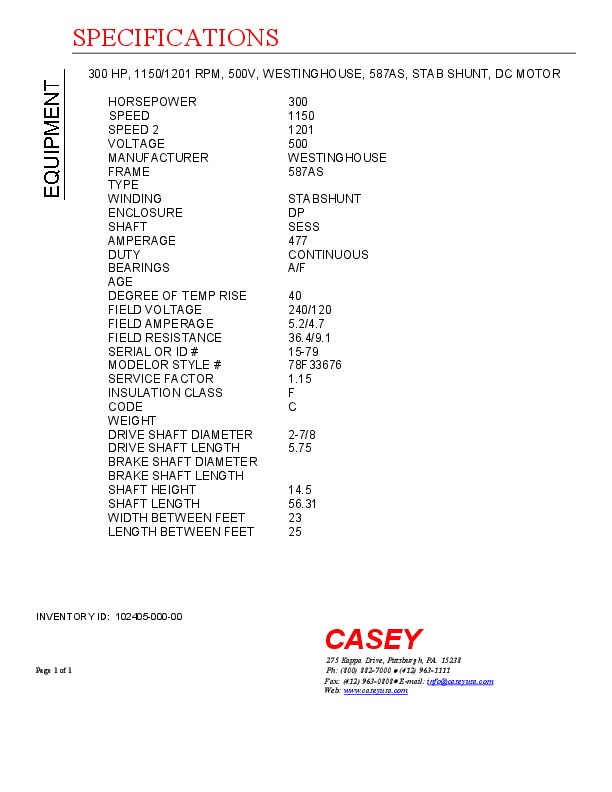

300 HP, 1150/1201 RPM, 500V, WESTINGHOUSE, 587AS, STAB SHUNT USED DC MOTOR
| INVENTORY ID | 10240500000 |
| TITLE | 300 HP, 1150/1201 RPM, 500V, WESTINGHOUSE, 587AS, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 300 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 1201 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 587AS |
| WINDING | STABSHUNT |
| ENCLOSURE | DP |
| SHAFT | SESS |
| AMPERAGE | 477 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240/120 |
| FIELD AMPERAGE | 5.2/4.7 |
| FIELD RESISTANCE | 36.4/9.1 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 15-79 |
| MODEL NUMBER OR STYLE NUMBER | 78F33676 |
| SERVICE FACTOR | 1.15 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 2-7/8 |
| DRIVE SHAFT LENGTH | 5.75 |
| SHAFT HEIGHT | 14.5 |
| MOTOR LENGTH | 56.31 |
| WIDTH BETWEEN FEET | 23 |
| LENGTH BETWEEN FEET | 25 |
