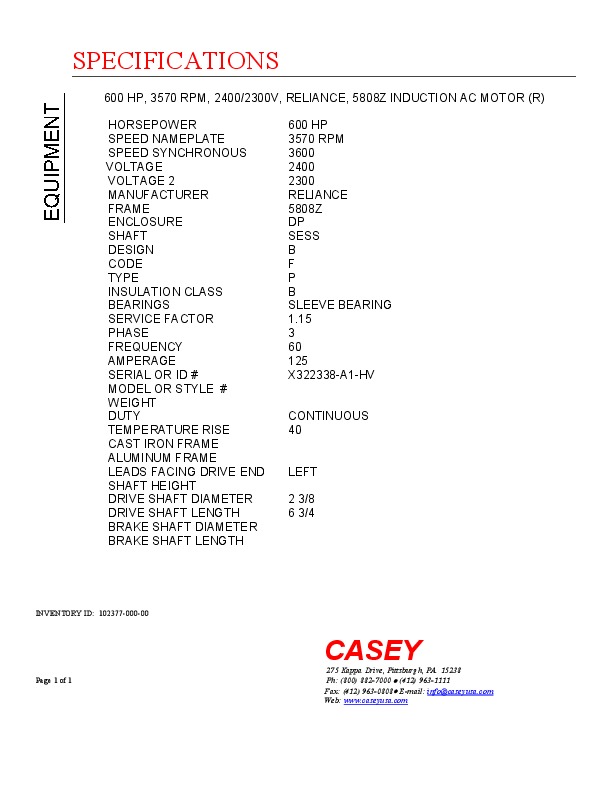

600 HP, 3570 RPM, 2400/2300V, RELIANCE, 5808Z INDUCTION AC MOTOR (R)
| INVENTORY ID | 10237700000 |
| TITLE | 600 HP, 3570 RPM, 2400/2300V, RELIANCE, 5808Z INDUCTION AC MOTOR (R) |
| HORSEPOWER | 600 HP |
| SPEED NAMEPLATE | 3570 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 2400 |
| VOLTAGE 2 | 2300 |
| MANUFACTURER | RELIANCE |
| FRAME | 5808Z |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | P |
| INSULATION CLASS | B |
| BEARINGS | SLEEVE BEARING |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 125 |
| SERIAL NUMBER OR ID NUMBER | X322338-A1-HV |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 6 3/4 |
