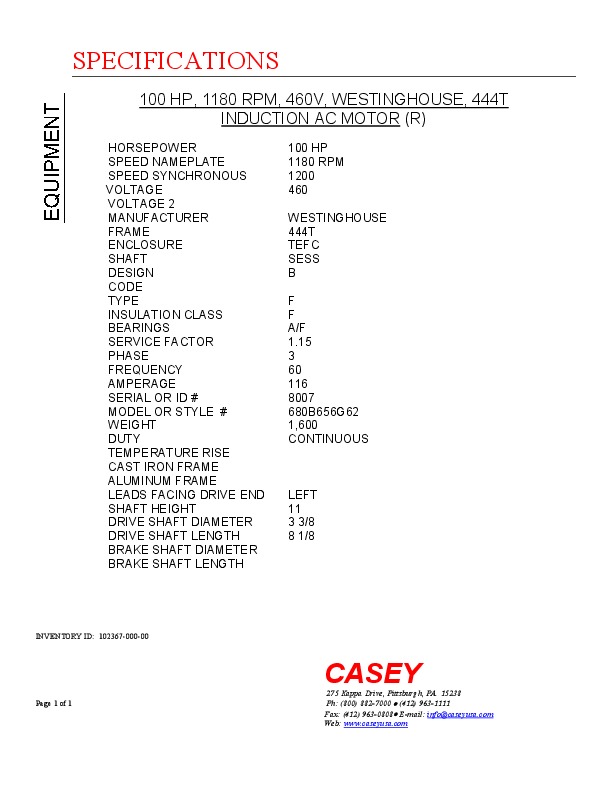

100 HP, 1180 RPM, 460V, WESTINGHOUSE, 444T INDUCTION AC MOTOR (R)
| INVENTORY ID | 10236700000 |
| TITLE | 100 HP, 1180 RPM, 460V, WESTINGHOUSE, 444T INDUCTION AC MOTOR (R) |
| HORSEPOWER | 100 HP |
| SPEED NAMEPLATE | 1180 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 460 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 444T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| TYPE | F |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 116 |
| SERIAL NUMBER OR ID NUMBER | 8007 |
| MODEL NUMBER OR STYLE NUMBER | 680B656G62 |
| WEIGHT | 1,600 |
| DUTY | CONTINUOUS |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 8 1/8 |
