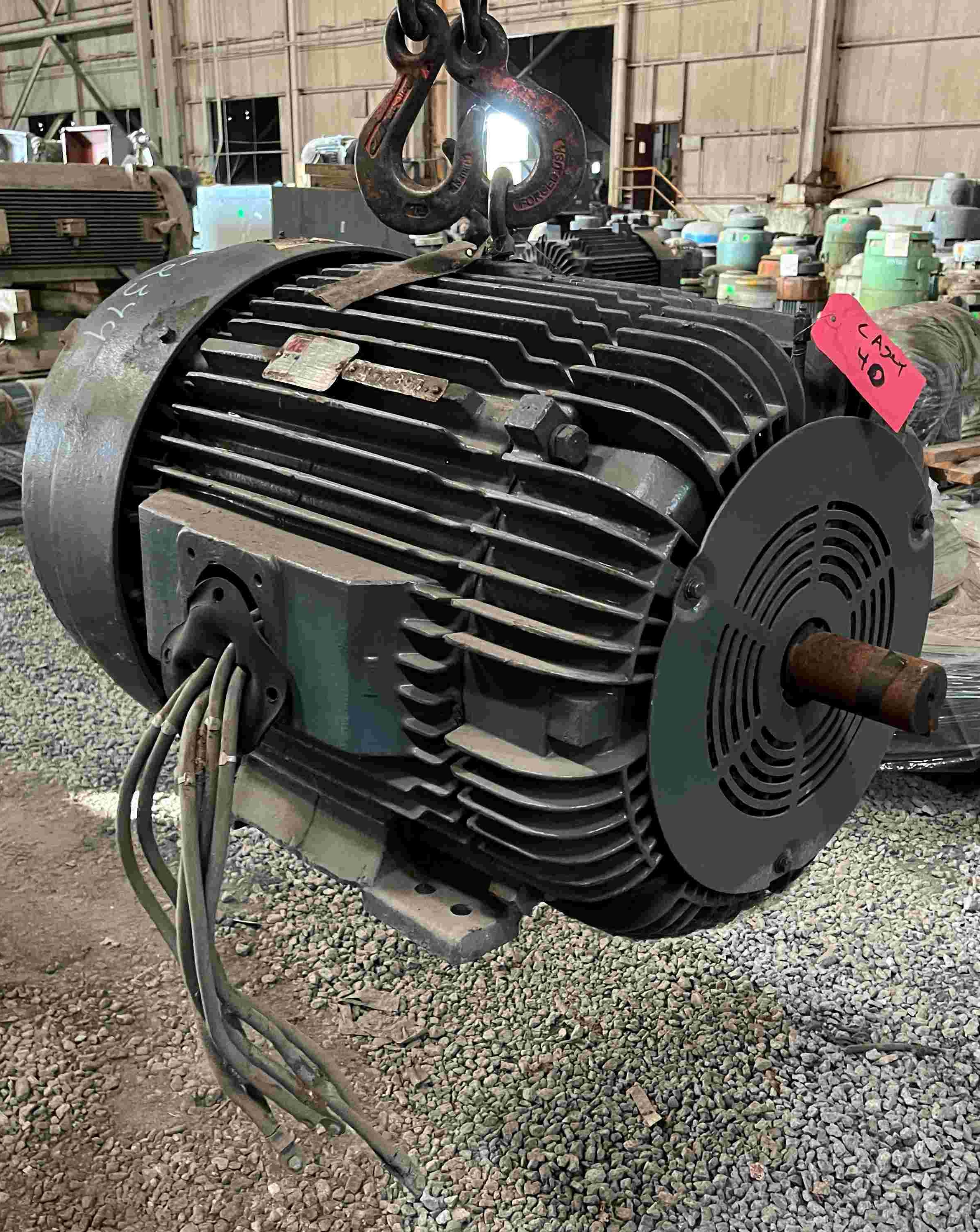

200 HP, 3575 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR (R)
 "10236200000 200 HP, 3575 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR (R)")
 "10236200000 200 HP, 3575 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR (R)")
 "10236200000 200 HP, 3575 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR (R)")
| INVENTORY ID | 10236200000 |
| TITLE | 200 HP, 3575 RPM, 460V, RELIANCE, 444TS, INDUCTION AC MOTOR (R) |
| HORSEPOWER | 200 HP |
| SPEED NAMEPLATE | 3575 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 444TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | P |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 219 |
| SERIAL NUMBER OR ID NUMBER | F44G5634C |
| WEIGHT | 1,600 |
| DUTY | CONTINUOUS |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 4 1/2 |
