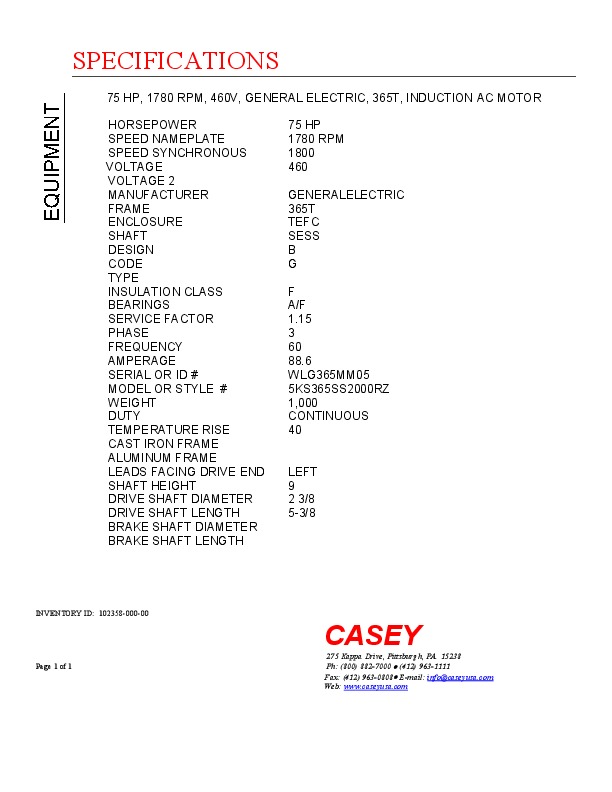

75 HP, 1780 RPM, 460V, GENERAL ELECTRIC, 365T, INDUCTION AC MOTOR
| INVENTORY ID | 10235800000 |
| TITLE | 75 HP, 1780 RPM, 460V, GENERAL ELECTRIC, 365T, INDUCTION AC MOTOR |
| HORSEPOWER | 75 HP |
| SPEED NAMEPLATE | 1780 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 365T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 88.6 |
| SERIAL NUMBER OR ID NUMBER | WLG365MM05 |
| MODEL NUMBER OR STYLE NUMBER | 5KS365SS2000RZ |
| WEIGHT | 1,000 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 9 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 5-3/8 |
