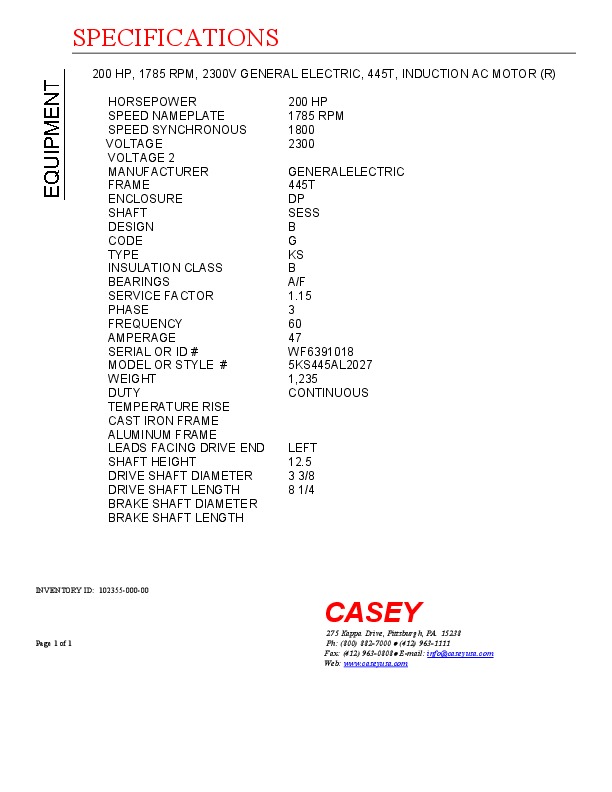

200 HP, 1785 RPM, 2300V GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR (R)
| INVENTORY ID | 10235500000 |
| TITLE | 200 HP, 1785 RPM, 2300V GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR (R) |
| HORSEPOWER | 200 HP |
| SPEED NAMEPLATE | 1785 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445T |
| ENCLOSURE | DP |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | KS |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 47 |
| SERIAL NUMBER OR ID NUMBER | WF6391018 |
| MODEL NUMBER OR STYLE NUMBER | 5KS445AL2027 |
| WEIGHT | 1,235 |
| DUTY | CONTINUOUS |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 12.5 |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 8 1/4 |
